AI Providers

Overview

The AI Providers page is where administrators connect the model providers Genesis uses for chat and embeddings. The page supports a primary provider view for already connected services and a catalog of additional providers that can be connected when needed. On Genesis Desktop, Genesis AI is the only provider that can be selected or configured. Other providers can remain visible in provider lists, but their controls open the Genesis Enterprise modal instead of changing the active provider. On Genesis Desktop, use Test Connection on the Genesis AI card; its result appears on the card. See Genesis AI connection test for the request and response details. The same provider restriction applies when a saved connection offers its own AI provider; Not now remains available. After an upgrade, Genesis Desktop waits to start the post-upgrade advisor until the app is unlocked and its AI provider is settled after sign-in. When Genesis AI is the only provider, this includes completing the automatic switch to Genesis AI; otherwise, an AI choice must be recorded. If the provider does not settle within one hour, that advisor run is skipped. Hosted deployments do not wait on this Desktop check.

Configure chat model tiers and embedding models from Config -> AI Providers using Change Models and the Embeddings tab. The legacy LLM Overrides page and its /api/config/llm/env read/write endpoints are no longer available.

Genesis ships two AI Providers layouts. Use the Stable | Beta toggle in the page header to switch between them; your choice is remembered for the sidebar entry. Stable (/config/llm-providers/) is the default. Beta (/config/ai-providers/) is an opt-in redesign with a hero card for the active provider, a connection list for other configured providers, setup-stage badges, and a guided connection wizard (New connection drawer).

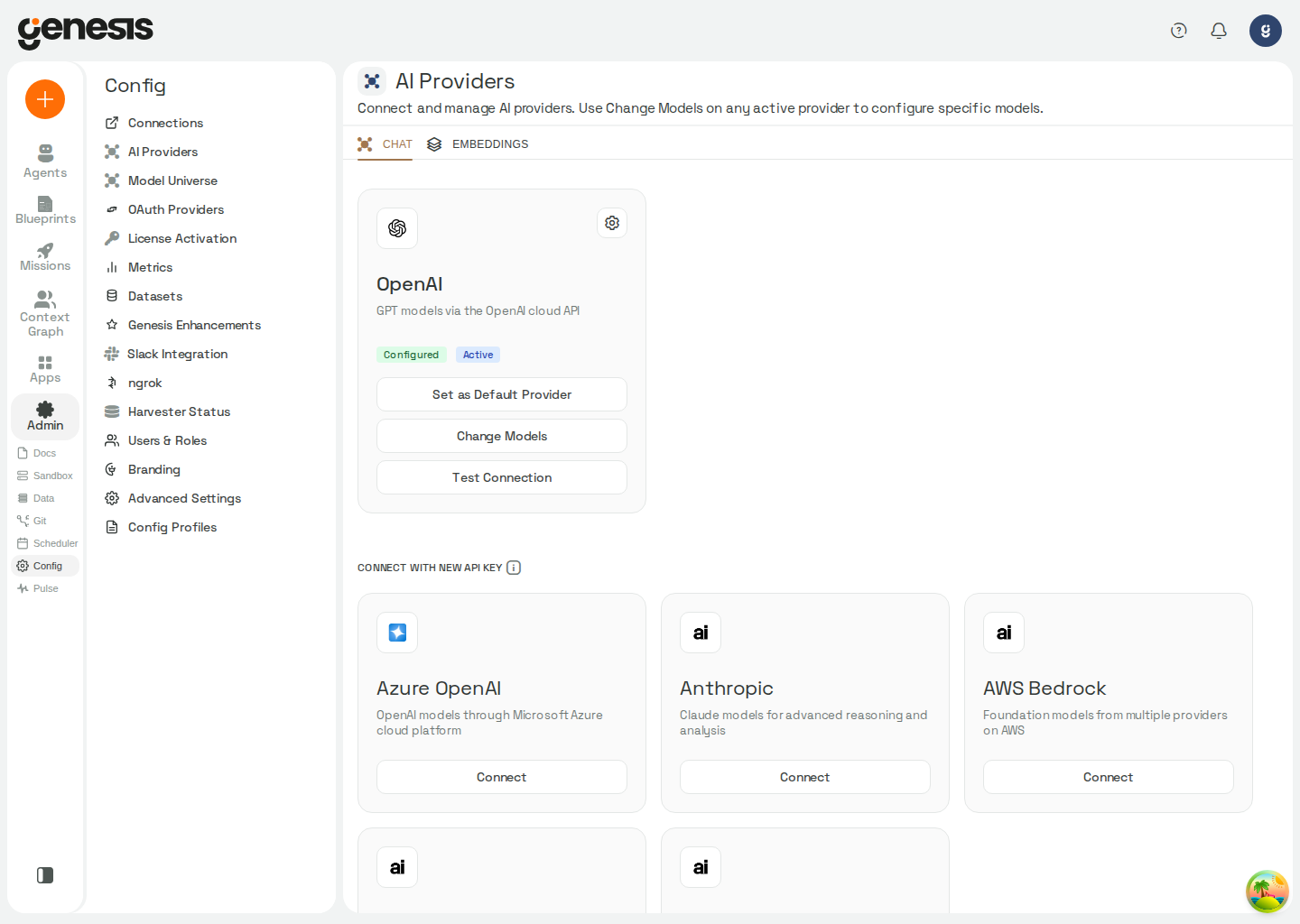

Actual Genesis AI Providers page showing configured and available chat model providers.

Main page areas

Area	Purpose
Chat tab	Configure providers used for conversational and reasoning tasks.
Embeddings tab	Select the active embedding provider and embedding model for search, retrieval, and indexing. Shows only providers that already support embeddings.
Configured provider cards	Review active/default state, test connectivity, and change model selections.
Available provider cards	Connect additional providers such as Azure OpenAI, Anthropic, AWS Bedrock, LiteLLM Proxy, or Other Providers (LiteLLM-managed vendors such as Google Gemini).

On the Beta page, a configured connection with denied admission shows an Enable control; providers already admitted do not show a toggle. Enabling sets admission to auto; parameter sufficiency is evaluated separately. If no chat provider is selected and this is the sole eligible chat provider, Genesis may select it; admission changes do not select an embedding provider. Setting admission to deny refuses provider use and clears it as the active chat provider when selected, without deleting its saved connection, credentials, or embedding identity. The admission setting is available in APP_CONFIG at these paths. Each setting is a string that accepts auto or deny, and defaults to auto.

Config path	Environment fallback
`providers.openai.admission`	`OPENAI_ADMISSION`
`providers.azureopenai.admission`	`AZURE_OPENAI_ADMISSION`
`providers.cortex.admission`	—
`providers.databricks.admission`	`DATABRICKS_ADMISSION`
`providers.litellm_anthropic.admission`	`ANTHROPIC_ADMISSION`
`providers.litellm_bedrock.admission`	`BEDROCK_ADMISSION`
`providers.litellm_gemini.admission`	`GEMINI_ADMISSION`
`providers.litellm_proxy.admission`	`LITELLM_PROXY_ADMISSION`
`providers.voyage.admission`	`VOYAGE_ADMISSION`

The former <PROVIDER>_ENABLED environment variables and the GENESIS__PROVIDERS____CONFIGURED override are retired. The one-time aa017_provider_admission migration carries an explicitly stored providers..configured: false value to providers..admission: deny. The stored marker itself is kept for rollback to v1.19.95; readiness in the newer version never reads it. Retention does not expire by calendar date. A separate release must explicitly retire these markers after the supported rollback window closes. This compatibility preserves providers configured before the upgrade, with unchanged provider settings and deployment inputs. It does not synchronize providers added, enabled, disabled, or deleted on the newer version back to the old marker. Those changes require recovery after rollback; in particular, a provider disabled on the newer version can appear enabled again on v1.19.95. Keep a pre-upgrade configuration/database backup when changes during the upgrade window may need to be reversed. This marker compatibility alone does not guarantee rollback across unrelated database schema migrations. The Embeddings tab and the Beta AI Providers hero card also show an embedding health notice. It reports whether Digital Twin has verified that the configured provider and model can actually embed; the provider and model fields alone only show recorded configuration. The notice carries Twin’s explanation for working, not working, or not yet verified. When no embedding client is configured, it shows Embeddings are not configured instead of the neutral Embedding status unknown state; configure an embedding provider and model before expecting semantic search to work. If Twin cannot provide a verdict for a configured client, it shows Embedding status unknown rather than treating the recorded configuration as proof that embeddings work. For the status values and diagnostic reason, see Lineage Tools. On the Beta page (/config/ai-providers/), the same work is organized as:

Area	Purpose
Hero card	Shows the active chat or embedding provider, its tier assignments (chat) or embedding model, and quick actions such as Change Models and Test.
Connected list	Other providers that are configured, partially set up, or have environment credentials detected. Rows show a setup-stage badge and Continue setup → when more steps remain.
New connection drawer	Guided wizard: pick provider → configure → secrets (when required) → SPCS External Access steps (when applicable) → test → models → done. The Models step can configure both chat tier assignments and an embedding model when the provider supports embeddings.

A provider denied by policy but with no saved credentials or configuration is not treated as a connection: it stays available in the New connection picker and does not appear in the Connected list. A disabled setup stage alone does not add a provider to the list; configured providers and providers with saved credentials remain visible there with the Disabled badge. Beta setup stages (shown as badges on connection rows):

Stage	Meaning
`disabled`	Provider admission is denied; its connection settings are retained.
`active`	Provider is active for chat or embeddings and has assigned models.
`needs_eai`	Credentials are saved but the Genesis External Access Integration is not yet assigned in SPCS.
`needs_models`	Provider is configured but chat tier or embedding model assignments are still missing.
`ready`	Provider is fully configured with models but not yet set active.
`env_detected`	Genesis detected provider credentials in the environment but has not saved them yet. For LiteLLM Proxy, this requires a complete bootstrap proxy configuration (base URL plus auth for the selected `auth_mechanism`) whose base URL is still supplied only by `LITELLM_PROXY_API_BASE` (`default_env_var`) — not when the URL is already saved in `APP_CONFIG`.
`not_configured`	Provider has not been set up. On the Beta page, a provider marked active in `APP_CONFIG` but missing required credentials (for example LiteLLM Proxy with only a base URL) also reports `not_configured`.

When authentication is enabled, the page stays in a loading state until /api/rbac/me/permissions resolves. Admins should not see a blank page on first navigation after login while permissions are still loading.

Typical workflow

Open Config -> AI Providers.
Review the currently configured provider.
Use Connect for a new provider or Change Models for an existing provider.
Set a default provider when multiple options are available.
Open the Embeddings tab (/config/llm-providers/?tab=embeddings on Stable, or /config/ai-providers/?tab=embeddings on Beta) when search and indexing should use a different provider or model than chat.
On the Embeddings tab, pick a configured provider tile, choose an embedding model from the searchable dropdown, and save. Saving a preference for a provider that is not active leaves the current embedding unchanged and does not reindex; if no active embedding identity exists, first-save adoption may establish one without reindexing an older embedding space. Changing the model for the active provider, or choosing Set Active for Embeddings on a different provider, asks you to confirm before applying the change. After confirmation, Genesis points document indexes to the new model-specific Chroma collection and starts a full background re-embed of documents from prior collections. Until that completes, indexes that exist only in a prior collection appear in Config → Documents with a Needs reindex badge.

In the Beta New connection drawer, non-Azure providers use separate test steps: Test Connection validates the provider, then Test Models validates each selected Premier, Main, and Fast chat model with a live call; when an embedding model is configured for an embedding-capable provider, that model is tested too. The Next button remains available if a test has not passed, so testing is optional. If the selected model assignments cannot load, the drawer reports the loading error and offers a retry. Azure keeps model selection before its combined provider-and-model test because the provider must be named before its model can be resolved. When the drawer opens from the Embeddings context, choose the embedding model first; Test Connection then tests that selected embedding model. In Select Chat Models, use the Test button beside a tier to check its currently selected model. Changing a tier selection clears its previous test result. If you interacted with the models and try to leave while any shown tier is unverified or failing, the drawer asks whether to leave; opening the step and closing it without changing anything does not trigger the prompt. For LiteLLM Proxy, an ordinary reconfiguration or credential rotation keeps the existing chat-tier assignments. When a configured proxy has no assigned model, choose Continue setup from its connection row to explicitly discover models and initialize the assignments. On SPCS, the first save can preserve the provider credentials while External Access is pending; after Approve External Access, use Continue setup to run the access check and model setup again. A successful access check with an empty catalog is reported as a save result rather than as a credential failure. The first successful save also records the backing connection with the authentication mode selected for the provider; OAuth settings do not require a follow-up save to persist. LiteLLM Proxy Test Connection resolves secret references in submitted credentials and reports categorized causes for common failures. See the connection test response details.

In Change Models on the Chat tab, the model pickers for chat assignments are searchable. Search matches both the model display name and the technical model identifier. For LiteLLM Proxy, search also matches the underlying model name when the proxy exposes one (for example global.anthropic.claude-opus-4-8 behind a deployment alias). See LiteLLM Proxy model selection below.

On the Embeddings tab, the model dropdown labels show each model’s display name while values use the technical model identifier; search matches both. The overview summary may show the active embedding model by display name. Save (or Set default / Switch to …) stays disabled until you change the active provider or pick a different model than the one currently in effect.

If you save chat-model assignments for a provider before its credentials are configured, Genesis persists the assignments and Inherited Chat Tier without switching the runtime to that provider. After you finish the provider setup and activate it, Genesis uses the saved assignments.

On the Beta page, Set Active for chat calls POST /api/config/llm-providers/{provider}/activate with force: true. It switches the active chat provider only — it does not call PUT /api/config/models/main/assignments with use_defaults: true, which would reset saved tier overrides back to Genesis defaults. On the New connection wizard Done step, Set Active for chat and embeddings checks the activation response: when success is false, Genesis shows an error toast with the API message (or a fallback) instead of a success toast.

Same-engine provider switches. OpenAI, Azure OpenAI, Databricks, and litellm_* providers (including LiteLLM Proxy) share the LiteLLM engine. When you Set Active or save a provider configuration that changes llm.active_provider, Genesis syncs runtime model assignments from the active provider’s saved Change Models tiers and clears stale process-global LiteLLM state left by the previous provider — for example LITELLM_MODEL, LITELLM_FAST_MODEL, LITELLM_PREMIER_MODEL, and the LiteLLM SDK api_base override. It does not delete LITELLM_PROXY_* bootstrap env vars; those remain the deployment-default source for unset AppConfig fields. Set Active on composite providers (litellm_*, including LiteLLM Proxy) activates the already-saved configuration without rewriting endpoint or auth from the activation request. LiteLLM Proxy chat, embedding, and discovery paths resolve proxy_api_base from providers.litellm_proxy.connection.base_url in AppConfig on each call (explicit DB/UI or file-backed values beat legacy LITELLM_PROXY_API_BASE), so switching to or from LiteLLM Proxy serves the saved proxy without a server restart. For unpinned LiteLLM turns with a named provider, later model calls use that provider’s current main, fast, and frontier assignments when they can be read, including changes made after the turn starts.

Whether a provider is configured is computed on every read from its effective parameters and secrets; Genesis never writes a configured marker and readiness never reads one. A partial save — for example a Workspace URL without a token, or a LiteLLM Proxy Base URL without auth — persists the values, and the provider reports the missing parameters until they are supplied.A successful provider save sets providers.<namespace>.admission to auto and, when no chat provider is selected and exactly one eligible provider remains, selects it. This includes saving only the API key of a secret-only provider (OpenAI, Anthropic, Gemini) through the secret fields API, and it re-admits a provider an operator had denied. Replacing a credential that is already saved runs a connection test first and keeps the old credential if the test fails; a first-time key is saved without a test.On the Beta page, secret-only providers call two endpoints after the Secrets step saves: POST /api/config/llm-providers/mark-configured, which re-admits the provider and adopts it for embeddings when no embedding pair is saved, and POST /api/config/llm-providers/{provider}/ensure-endpoints, which registers the provider’s egress hosts in CUSTOM_ENDPOINTS — saving only an API key does not register them. LiteLLM Proxy is not secret-only: a successful POST or PUT /api/config/llm-providers/litellm-proxy admits it in the save finalize step (after syncing or removing the OAuth backing connection). If endpoint registration fails, Genesis reports a warning but still advances the wizard — retry from Continue setup → or call the endpoint again before Approve External Access on SPCS.

Credential rotation and failed saves. When you save or rotate provider credentials with Test Connection enabled (the default on provider cards), Genesis runs the connection test as part of the save. If the test fails, Genesis rolls back to the previously saved credential and any runtime env state the save touched — the invalid key is not left in place. For Snowflake Cortex, the save-time test validates the PAT and account you submitted, not the previously exported runtime credential on Cortex-active installs. This applies to OpenAI, Azure OpenAI, Snowflake Cortex, Databricks, LiteLLM Proxy, and Other Providers (Anthropic, Bedrock, Gemini, and related LiteLLM routes). Partial saves of non-secret fields (for example a Workspace URL without a token) are unchanged: values persist, but the provider stays unmarked until required credentials are present. Overwriting a provider API key through Config → Secrets or Advanced Settings (providers.<provider>.connection.* secret fields) uses the same guard when a credential is already configured; first-time entry is not guarded because there is nothing to restore.

Runtime updates. After a successful provider save, model-assignment save, or provider API-key change, Genesis applies the provider, model, and credential changes to the running process immediately. New chat, embedding, and other provider operations use the updated runtime state without a server restart. Failed or rolled-back saves leave the previous runtime state in place.

In Snowflake Native App / SPCS deployments, some provider cards show extra outbound-access steps such as Approve External Access and Assign to Genesis. The Approve External Access control opens the Snowflake console in a new browser tab. After you trigger those actions from the page, Genesis rechecks the assignment immediately so the provider card can move forward as soon as Snowflake confirms the change. Assignment verifies the live GENESISAPP_SERVICE_SERVICE binding; a recorded-but-not-attached state is reported as failure instead of success.

Configuring a provider through the config API

Container and Kubernetes deployments configure their LLM provider after the container is up, through the same endpoints this page’s UI calls. There is no provider environment variable to set at launch: the provider, its credential and its model assignments are APP_CONFIG state, and they persist across every restart once saved. (For IaC-managed deployments, a mounted genesis-config.yaml writes the same APP_CONFIG paths — see Infrastructure-managed deployments below.)

Step	Call	Purpose
1	`POST /api/config/llm-providers/<card>`	Create the provider’s connection and credential
2	`POST /api/config/llm-providers/<llm_type>/activate`	Make it the active chat provider
3	`PUT /api/config/models/main/assignments`	Assign models to the chat tiers

The URL segment in step 1 is the provider card; the segment in step 2, and the provider field in step 3, is the llm type. They are not the same strings:

Provider	Card (step 1)	llm type (steps 2 and 3)
OpenAI	`openai`	`openai`
Azure OpenAI	`azure`	`azureopenai`
Snowflake Cortex	`cortex`	`cortex`
Databricks	`databricks`	`databricks`
LiteLLM Proxy	`litellm-proxy`	`litellm_proxy`
AWS Bedrock	`other` (body `"provider": "bedrock"`)	`litellm_bedrock`
Anthropic	`other` (body `"provider": "anthropic"`)	`litellm_anthropic`
Google Gemini	`other` (body `"provider": "gemini"`)	`litellm_gemini`

Use POST to create — it validates the provider’s complete field set — and PUT on the same path to change one field later. POST refuses a provider that already exists and tells you to use the update endpoint; that refusal is the signal to switch to PUT. A PUT against an unconfigured provider stores a partial configuration that fails at request time instead. Put credentials in a request-body file, never on the command line: process arguments are visible to every process on the host and land in shell history. Every one of these endpoints requires the access_config_panel permission. LiteLLM Proxy creation and updates also require admin access; updates additionally require manage_secrets because an update may stage managed-secret changes. On a deployment with authentication enabled each call carries a bearer token — supply it through a curl config file rather than an argument, for the same reason.

umask 077
set -o pipefail   # json.tool must not mask a failed curl
GENESIS_URL=https://<genesis-host>
BODY=$(mktemp "${TMPDIR:-/tmp}/genesis-llm-body.XXXXXX.json")
CURL_CONFIG=$(mktemp "${TMPDIR:-/tmp}/genesis-curl.XXXXXX")
trap 'rm -f "$BODY" "$CURL_CONFIG"' EXIT
chmod 600 "$BODY" "$CURL_CONFIG"

# Bearer token for a user holding access_config_panel. read -rs keeps it out of
# shell history; omit these two lines and --config only when auth is disabled.
read -rsp 'Genesis access token: ' GENESIS_TOKEN && echo
printf 'header = "Authorization: Bearer %s"\n' "$GENESIS_TOKEN" > "$CURL_CONFIG"
unset GENESIS_TOKEN

cat > "$BODY" <<'JSON'
{"api_key": "<openai-api-key>", "test_connection": true}
JSON
curl -sS --fail-with-body --config "$CURL_CONFIG" \
  -X POST -H 'Content-Type: application/json' --data @"$BODY" \
  "$GENESIS_URL/api/config/llm-providers/openai" | python3 -m json.tool

curl -sS --fail-with-body --config "$CURL_CONFIG" \
  -X POST -H 'Content-Type: application/json' -d '{"force": true}' \
  "$GENESIS_URL/api/config/llm-providers/openai/activate" | python3 -m json.tool

curl -sS --fail-with-body --config "$CURL_CONFIG" \
  -X PUT -H 'Content-Type: application/json' \
  -d '{"provider": "openai", "use_defaults": true, "activate_provider": true}' \
  "$GENESIS_URL/api/config/models/main/assignments" | python3 -m json.tool

Read each response before running the next call. --fail-with-body stops on an HTTP error, but these routes also answer 200 with success: false — most often “Configuration for … already exists. Use configure endpoint to update and enable it.” Repeat that first call as a PUT when you see it; do not run the activation or assignment call until the step before it reported success: true. Confirm the result with GET /api/config/llm-providers/llm/health, whose data.health.components.llm_config_manager.current_llm names the active llm type. That is a configuration check, not a model call: it reports green on a saved key the provider rejects, on a model id that does not exist, and on an endpoint nothing can reach. Send one real chat message on a fresh thread before treating the deployment as ready.

Footnote on default_env_var seeding. Some schema fields carry a default_env_var binding, and the bootstrap layer picks that variable up only while nothing is stored for the field (secrets are captured once at startup, no-clobber). This supports local, image and IaC bootstrap. Values saved through the UI, config API or config file outrank these defaults; changing an env seed does not replace a saved field. For Bedrock, AWS_BEDROCK_REGION is read once per process for providers.litellm_bedrock.connection.default_endpoint.aws_region, and an explicitly stored value—including an empty value—takes precedence.

Infrastructure-managed deployments

For Helm-based deployments, you can also bootstrap provider settings from a separate genesis-config.yaml file instead of placing provider credentials directly in Helm values. The shipped genesis-config-example.yaml covers openai, azureopenai, databricks, litellm_anthropic, litellm_bedrock, litellm_gemini, litellm_proxy (API key, static headers, or OAuth), and voyage.

providers:
  litellm_bedrock:
    connection:
      auth_mode: "api_key"            # or "iam_role" for IRSA (no stored creds)
      api_key:
        aws_bearer_token: "aws_prod/genesis#bedrock_bearer_token"
      default_endpoint:
        aws_region: "us-east-1"
    models:
      default_chat: "global.anthropic.claude-sonnet-4-6"
      embedding_model: "bedrock/amazon.titan-embed-text-v2:0"
llm:
  active_provider: "litellm_bedrock"
embedding:
  active_provider: "litellm_bedrock"
  active_model: "bedrock/amazon.titan-embed-text-v2:0"

For IRSA-based auth without stored credentials, set auth_mode: "iam_role" and omit api_key; boto3 uses the pod’s IRSA role automatically. For a LiteLLM Proxy that uses OAuth instead of a static proxy API key, configure the provider and OAuth ownership policy in the same file. Secret-valued fields accept aws_* / gcp_* / vault_* / secret_* / env_* references (see External Secrets).

providers:
  litellm_proxy:
    connection:
      auth_mode: "oauth"
      transport: "auto"  # or "openai" / "anthropic" to pin one route; see Wire Transport below
      base_url: "https://litellm-proxy.internal.example.com"
      oauth:
        authorization_url: "https://auth.example.com/oauth/authorize"
        token_url: "https://auth.example.com/oauth/token"
        client_id: "genesis-litellm-proxy"
        client_secret: "aws_prod/genesis-llm#litellm_proxy_oauth_client_secret"
        token_endpoint_auth_method: "client_secret_post"
        scopes: "openid profile email offline_access"
        custom_header_descriptors:
          - field_key: "oauth_header_x_ally_tenant"
            header_name: "X-Ally-Tenant"
            required: true
            description: "Tenant header required by the proxy"
            applies_to: "both"
          - field_key: "oauth_header_x_api_key"
            header_name: "X-Api-Key"
            required: true
            is_secret: true
            applies_to: "downstream"
        service_account_header_values:
          oauth_header_x_ally_tenant: "tenant-123"
          oauth_header_x_api_key: "aws_prod/genesis-llm#litellm_proxy_header_secret"
    settings:
      oauth_credential_policy: "service_account"
      allow_user_oauth_fallback_for_non_interactive: false
llm:
  active_provider: "litellm_proxy"

For service-account OAuth header values in config files, prefer service_account_header_values — a YAML mapping keyed by each descriptor’s field_key. When both are set, the dict takes precedence over service_account_header_values_json. Each value can be a plain string or a secret reference (aws_*, gcp_*, vault_*, secret_*, env_*); when the matching descriptor has is_secret: true, Genesis resolves the reference through the encrypted secret store at runtime. You can still supply the whole mapping as service_account_header_values_json — either a JSON string or a secret reference to a stored JSON blob (see External Secrets), for example {"oauth_header_x_ally_tenant":"tenant-123"}. Use settings.oauth_credential_policy: "per_user_oauth" for interactive per-user browser grants. Use "service_account" for scheduled or other non-interactive workloads that cannot complete a browser grant. Header values may also be keyed by a descriptor’s header name or its normalized alias: for X-Ally-Tenant, these include x-ally-tenant and x_ally_tenant. Key matching is case-insensitive, and Genesis stores the value under the descriptor’s field_key. A submitted key that matches no descriptor is rejected. When adding or changing descriptors, use the actual HTTP header name in header_name, not a generated field key such as oauth_header_x_ally_tenant; a malformed descriptor is refused when saved. For Helm- or env-only bootstrap, legacy LITELLM_PROXY_* variables are wired as default_env_var defaults in the schema — for example LITELLM_PROXY_TRANSPORT (providers.litellm_proxy.connection.transport), LITELLM_PROXY_OAUTH_CREDENTIAL_POLICY (providers.litellm_proxy.settings.oauth_credential_policy), LITELLM_PROXY_ALLOW_USER_OAUTH_FALLBACK_FOR_NON_INTERACTIVE (providers.litellm_proxy.settings.allow_user_oauth_fallback_for_non_interactive), and LITELLM_PROXY_OAUTH_CUSTOM_HEADER_DESCRIPTORS_JSON (providers.litellm_proxy.connection.oauth.custom_header_descriptors). They seed unset fields at startup; values saved in AI Providers, Advanced Settings, or genesis-config.yaml always win over a leftover env var. Set LITELLM_PROXY_OAUTH_CUSTOM_HEADER_DESCRIPTORS_JSON to a JSON array when bootstrapping descriptors without genesis-config.yaml. In service_account mode, Genesis sends descriptor values with applies_to token_exchange on the OAuth token request, forwards downstream headers during client-credentials token acquisition, and sends downstream headers on proxy /models discovery, background model-catalog loading, and runtime proxy calls. Saved service-account header values persist in provider metadata as oauth_service_account_header_values (when supplied as a dict) or oauth_service_account_header_values_json. Status reads also return oauth_service_account_header_value_keys — the configured field_key list without secret values — so Reconfigure can show A saved shared value already exists for this header even when the backing LiteLLM Proxy connection no longer exposes shared defaults in locator.user_oauth_fields. At runtime, Genesis resolves values from provider metadata first, then connection.locator.user_oauth_fields, then connection.user_oauth_fields. For descriptor definitions, Genesis uses the resolved LiteLLM Proxy admin snapshot from APP_CONFIG (saved UI/DB, genesis-config.yaml, and unset-field default_env_var bootstrap) first; when that list normalizes to empty, it falls back to oauth_custom_header_descriptors on the shared backing LiteLLM Proxy connection (litellm_proxy.shared). Descriptors marked required: true must have a non-empty value for the applicable applies_to scope or Genesis raises a validation error before calling the proxy. If a saved shared service-account configuration has a malformed descriptor or a missing required value, the LiteLLM Proxy status panel in AI Providers reports the issue. Correct descriptors in Advanced Settings at providers.litellm_proxy.connection.oauth.custom_header_descriptors, or provide the required value in the service-account header values setting. Pass the file to Helm with --set-file genesisConfig.content=genesis-config.yaml, or set genesisConfig.existingConfigMap to a pre-created ConfigMap. Secret fields in this file accept the same aws_* / gcp_* / vault_* / secret_* / env_* reference syntax documented in External Secrets. On every startup, Genesis re-evaluates the mounted file (via GENESIS_CONFIG_FILE or the saved profile path) before auto-populating missing schema fields. If the profile path or file hash changed, Genesis performs a section-scoped update into APP_CONFIG: only top-level sections present in the file are cleared and rewritten; omitted sections keep their current database values. The clear and rewrite for each touched section is atomic — a failed apply rolls back so fields such as llm.active_provider are not left unset mid-restart. If startup apply fails, Genesis leaves profile metadata unchanged and retries on the next restart (see Config Profiles — Startup loading). Connections named in a file connection section merge per-connection (file entries override, others survive). If the profile is unchanged, it fills only missing paths and preserves existing values. Genesis then runs the env↔config bridge: non-secret fields with default_env_var are exported to legacy environment-variable consumers unless the variable is already set; secret fields with default_env_var are captured from the environment into their default managed secrets when unset. See Config Profiles — Startup loading and Advanced Settings — Secret-valued settings for the full priority, capture, and reload rules. External secret references (aws_*, gcp_*, vault_*) stored on LLM provider secret fields are preserved through the App Config → legacy runtime config bridge and resolved by resolve_secret() at read time. Genesis-managed secret_* references are emitted only when the backing secret exists; external refs are always emitted because they resolve outside the Genesis SECRETS table. Provider credentials, per-provider model assignments, and the active chat and embedding selections are persisted in APP_CONFIG under providers.*, llm.active_provider, embedding.active_provider, and embedding.active_model. On upgrade, Genesis runs startup migrations that copy any remaining legacy EXT_SERVICE_CONFIG LLM namespaces into those AppConfig paths (aa009_ext_service_llm_migration); source rows are left in place until a later cleanup phase. A follow-up heal migration (aa010_ext_service_llm_reapply) re-applies provider values whose AppConfig targets were overwritten by bootstrap NULL-scaffold overlap on prior releases (only default-sourced NULL rows are touched). A one-time Snowflake heal migration (aa011_cortex_active_override_heal) restores llm.active_provider when a pre-fix startup bug forced it to cortex over a still-configured legacy model_config.main_provider in EXT_SERVICE_CONFIG. Provider parameter sufficiency is never stored: it is recomputed on every read from connection fields, their default_env_var, and managed secrets. A provider admission migration (aa017_provider_admission) carries only an explicit legacy providers..configured: false into providers..admission = deny and keeps the stored marker for rollback until a release explicitly retires it; newer readiness reads ignore it. A Cortex embedding default migration (aa013_cortex_embedding_default_pin) pins unset Cortex deployments to embedding.active_model = e5-base-v2 (and sets embedding.active_provider = cortex when it was only inferred from llm.active_provider) so catalog-order changes cannot silently re-point document indexes to a different model-specific collection. The migration is a no-op when embedding.active_model is already set explicitly. When no complete provider remains after the heal, Genesis logs a loud warning. The aa015_legacy_provider_namespace_heal migration also carries non-secret values from the pre-Variant-A provider sections (for example, litellm_bedrock.connection.default_endpoint.aws_region) into the canonical providers..* paths when those canonical fields are unset. It is fill-only and does not copy secret-typed fields; re-enter a provider credential on the AI Providers page when it predates the provider namespace move. The follow-up aa016_incomplete_provider_marker_revalidation migration rechecks any configured marker carried by aa015. The next state read defaults to Cortex only on a Cortex-capable host; otherwise no provider is promoted, and an operator must activate one. Upgrades that ship these migrations together heal automatically on the next restart when EXT_SERVICE_CONFIG source rows still exist — no manual re-entry of credentials is required. Startup migrations run in alphabetical order after bootstrap completes and are serialized against schema auto-population; if an earlier migration in the chain fails, later migrations (including the LLM backfill steps) do not run until the failure is fixed and Genesis restarts. When that happens, Genesis logs STARTUP MIGRATION CHAIN HALTED at CRITICAL severity with the failed migration name and every blocked migration — search Pulse Live Logs or server logs for that string. Treat the file as the canonical source for IaC-managed deployments. Normal pod restarts with an unchanged mounted file preserve later UI changes, but a Helm upgrade or ConfigMap change that updates the file content triggers a full reload on the next startup.

Provider-specific notes

In Genesis Desktop (laptop mode), the Cortex provider can use a saved Snowflake connection instead of separately entered credentials. This stores providers.cortex.connection.auth_method: "connection" (schema default "") and providers.cortex.connection.connection_name (schema default ""; the connection name without the snowflake. prefix). The connection supplies the account and authentication at call time; its credentials are not copied into Cortex configuration. On Genesis Desktop, saving a LiteLLM Proxy while Genesis AI is configured prompts for confirmation because the personal proxy replaces the Genesis AI provider slot.

Snowflake active provider precedence. On Snowflake Native App / SPCS hosts, llm.active_provider in APP_CONFIG is authoritative: a configured non-Cortex provider (for example litellm_bedrock or litellm_proxy) stays active across restarts and is not overwritten by CORTEX_MODE or native Cortex availability. Genesis registers Cortex as a selectable provider whenever it is available, but activates it only when no chat provider is active yet — the zero-config default for fresh installs. CORTEX_OVERRIDE no longer affects state reads (legacy execution layers may still honor it until their cleanup). After startup migrations run, Genesis invalidates the AppConfig snapshot and LLM overview caches so AI Providers reflects the restored active provider immediately instead of serving a stale cortex-only view until cache expiry.

Removed LiteLLM providers. LiteLLM Mistral (litellm_mistral) and LiteLLM Cerebras (litellm_cerebras) are no longer available in AI Providers. On the next startup, Genesis clears llm.active_provider when its resolved value is one of those providers or their former bare aliases (mistral or cerebras), and clears their saved configured markers. Genesis does not select a replacement automatically: reselect and configure a provider in Config → AI Providers. If GENESIS__LLM__ACTIVE_PROVIDER still names one of the removed providers, unset that environment override first because it takes precedence over APP_CONFIG. When no provider remains, Genesis falls back to Cortex only on a Cortex-capable host; otherwise, no provider is activated.

OpenAI requires an API key on the provider card before Genesis marks the provider configured. Genesis routes OpenAI chat through the LiteLLM engine. The custom OpenAI chat engine has been retired: a saved openai engine override is warned about and ignored, without rewriting provider or model settings (see Provider engine overrides). OpenAI remains a supported provider, and SDK-backed image and speech features remain available. When the runtime service name is litellm_openai, Genesis resolves its embedding configuration and API key from the same providers.openai schema. Change Models assignments persist under providers.openai.models.* in APP_CONFIG — default_chat, fast_model, premier_model, supervisor, harvester, and knowledge_server — and each field’s default_env_var chain (OPENAI_MODEL_NAME, OPENAI_MODEL_SUPERVISOR, OPENAI_FAST_MODEL_NAME, and related vars) still applies when that assignment is unset. Chat tier getters (get_current_model, fast_model_name, smart_model_name, frontier_model_name) read the live assignment on each call instead of trusting a per-adapter snapshot from session dispatch, so Change Models updates take effect on the next turn without a server restart; during early bootstrap or when config is unavailable, getters fall back to the instance snapshot or env. Genesis prefixes model ids with openai/ for LiteLLM calls, strips unsupported top-level JSON Schema combinators (anyOf, oneOf, allOf) from tool parameters before sending the request, and does not build a separate raw OpenAI client. Each call supplies explicit api_key and api_base to LiteLLM (providers.openai.connection.base_url when configured — env: OPENAI_BASE_URL / OPENAI_API_BASE — otherwise https://api.openai.com/v1); a missing resolved API key fails fast instead of falling back to ambient OPENAI_API_KEY, and the pinned api_base prevents process-global LiteLLM Proxy state from capturing direct OpenAI chat or embedding calls when LiteLLM Proxy is configured for chat. Model tier precedence for auxiliary work is unchanged: fast-tier and thread_title work resolve fast_model first, then supervisor or default_chat; other supervisor work prefers supervisor, then default_chat. Genesis no longer substitutes hardcoded gpt-5-mini or gpt-5-nano for fast or titling work based on the main model family — set the fast tier explicitly in Change Models.
Snowflake Cortex can be saved and tested without extra credentials when Genesis is already running in a Snowflake-native runtime (Native App / SPCS) with Cortex available — credential fields are hidden on the form, and Save Configuration / Test Connection use native runtime credentials instead. In other deployments, choose Authentication Method: Personal Access Token (PAT) (default), Key Pair (JWT), or Connection (Genesis Desktop / laptop mode only). For Connection, choose an existing Snowflake connection on the Cortex form’s Use Snowflake Cortex with snowflake.<name> panel; Genesis verifies that Cortex responds, then stores the connection reference rather than copying its credentials. Every Cortex call uses that connection’s account and its saved authentication (Snowflake OAuth, key pair, or PAT). An identity-provider Snowflake connection requires a browser OAuth sign-in when you choose it. To use a connection for chat and embeddings, select Use with embeddings; choosing chat only leaves the current embedding provider unchanged. In PAT mode, enter Account URL and Personal Access Token. When you supply a PAT or change the account host, Test Connection and save-time validation exercise that submitted credential and host — not a previously working exported runtime PAT. The connection form has no model field; Genesis persists a model in provider metadata only when you pass model explicitly (for example through the API or Change Models). A fresh install does not pin catalog or env defaults into stored config — runtime defaults from CORTEX_MODEL still apply through the schema default_env_var chain when no saved assignment exists. In key-pair mode, enter Snowflake Account (ORGID-ACCTID or full host such as myorg-myacct.snowflakecomputing.com), Snowflake User, Private Key (PEM text), and optional Private Key Passphrase for encrypted keys; Account URL is optional because Genesis can derive the REST host from Snowflake Account. When credential fields are shown, the Cortex card also exposes Embedding Method: REST API (default) calls the Cortex REST embedding endpoint using the saved PAT or a short-lived JWT from the key pair; SQL (Direct Snowflake) opens a direct Snowflake connection and runs SNOWFLAKE.CORTEX.EMBED_TEXT_768 (requires Snowflake User; Warehouse and Role are optional; SQL auth uses the PAT as password or key-pair JWT via SNOWFLAKE_JWT). In Snowflake Native App / SPCS runtimes, document and thread embeddings always use the SQL path via the deployment’s Snowflake session regardless of this setting. When Snowflake Cortex is the active embedding provider on the Embeddings tab, Genesis syncs EMBEDDING_PROVIDER, EMBEDDING_MODEL, and CORTEX_EMBEDDING_MODEL from the saved selection during environment sync. Genesis applies the e5-base-v2 default for CORTEX_EMBEDDING_MODEL only when that variable is not already set in the environment. For auxiliary Cortex calls, Change Models assignments are the primary source: main chat work resolves default_chat; fast-tier helper work and thread titling resolve fast_model, then default_chat; when no assignment resolves, the model of the Cortex connection applies. These calls never read a model environment variable directly, but default_chat and fast_model still resolve through the schema default_env_var chain (CORTEX_MODEL, CORTEX_FAST_MODEL_NAME) when nothing is explicitly saved. V6 thread-summary routing follows the same assignment-first precedence as compression so chat and summary paths stay aligned.

If Snowflake refuses a Cortex model because of Model RBAC, Test Connection shows a multiline remediation instead of classifying the failure as invalid credentials. The message includes the Snowflake error code (399217 for SQL or 003001 for REST), the missing application role, and the ACCOUNTADMIN commands needed to grant access; long diagnostics can be expanded with Show more. The same remediation is returned when a chat request is refused. For the account-side grants, see Resolve Cortex Model RBAC refusals.

Azure OpenAI requires Endpoint URL, API Key, API Version (schema default 2025-04-01-preview), and a configured chat deployment on the provider card. Change Models assignments store Azure deployment names (not OpenAI SKU ids). Genesis routes all Azure OpenAI chat, embedding, connection-test, and auxiliary tool paths through the LiteLLM engine with per-call credentials from the saved providers.azureopenai connection — there is no separate native Azure OpenAI client path. Test Connection sends a LiteLLM completion using the saved endpoint, API key, API version, and deployment name; blank fields fail fast instead of falling back to ambient AZURE_* environment variables. If the selected deployment is not found, create a deployment with that name in Azure AI Foundry or choose an existing deployment in Change Chat Models. For GPT-5.4-and-later or GPT-6 models, Genesis raises an older dated API version to 2025-03-01-preview, the minimum version that serves Azure’s Responses API; a version already at or after that date, or a non-date version such as preview or latest, is left unchanged. This also applies when an opaque deployment name is mapped to its canonical model with providers.azureopenai.settings.deployment_base_models. Genesis prefixes deployment names with azure/ for LiteLLM calls, strips unsupported top-level JSON Schema combinators (anyOf, oneOf, allOf) from tool parameters before sending the request, and can automatically retry a hung streamed turn once in non-streaming mode when providers.azureopenai.settings.stream_fallback is true (default). Tune the first-token wait with providers.azureopenai.settings.stream_fallback_timeout (default 8.0 seconds). See Azure OpenAI stream fallback.
Databricks supports saved pat (default) and oauth modes, plus deployment-selected app_identity. PAT requires Workspace URL and Personal Access Token. oauth reuses an existing Databricks user_oauth connection from Connections; Databricks OAuth Connection is required, Workspace URL is optional, and Genesis derives https://<connection-host>/serving-endpoints when it is blank. Interactive OAuth calls use the acting user’s grant; background or no-user auxiliary calls can use a Service Principal (OAuth M2M) connection configured at providers.databricks.connection.oauth.m2m_connection_name in genesis-config.yaml (see External Secrets). Inside a Databricks App, PAT-based model calls and PAT-mode settings saves or tests are refused; use oauth or the App identity instead. OAuth-backed calls and tests use the signed-in user’s grant. Set providers.databricks.connection.auth_mode to app_identity only when Genesis runs as a Databricks App. Every call, with or without a user, then uses an access token for the App’s service principal, minted from the App runtime’s DATABRICKS_HOST, DATABRICKS_CLIENT_ID, and DATABRICKS_CLIENT_SECRET; those values must be present, and the serving endpoint must be in the same workspace. Genesis reuses a cached token until it has less than 30 minutes remaining, then exchanges credentials for a new token; concurrent calls share an in-flight exchange. Missing credentials or a workspace mismatch fail the call without falling back to a PAT, user token, or ambient DATABRICKS_* environment variable. The AI Providers card identifies this as Databricks App identity and refuses PAT or OAuth setting saves while this mode is active; change the deployment configuration to switch modes. The Databricks App deployment example is documented in Deploying Genesis on Databricks — Private full Genesis App pilot. Test Connection exercises a LiteLLM completion using the credential selected by the active mode. Genesis routes Databricks chat, embeddings, connection tests, auxiliary tool, and image_analysis paths through LiteLLM with explicit per-call credentials. The shipped assignments include databricks-claude-opus-5 for default_chat, premier_model, supervisor, harvester, and knowledge_server, and databricks-claude-haiku-4-5 for fast_model; assignments can be changed in Change Models. databricks-claude-opus-5-5 is selectable. To avoid provider rejections of mid-conversation system messages, Genesis sends non-leading system messages as user messages in Databricks requests; their order and context are preserved, and the stored thread history keeps its original roles. Fast-tier work and thread_title use fast_model first, then supervisor, then default_chat. Genesis prefixes serving endpoint names with databricks/, strips unsupported top-level JSON Schema combinators from tool parameters, and can retry a hung streamed turn in non-streaming mode when providers.databricks.settings.stream_fallback is true (default false). Tune its first-token wait with providers.databricks.settings.stream_fallback_timeout (default 2.0 seconds); see Databricks stream fallback. Databricks streaming usage metadata includes cached input counters for Thread Cost Analysis. Per-user OAuth auth failures show an inline re-authorization card in chat; PAT and service-principal failures are treated as configuration errors.
Other Providers is the catalog label for the generic LiteLLM integration (litellm). Use it to connect Anthropic, Bedrock, Google Gemini, and other LiteLLM-backed vendors. Claude Opus 5.5 is the shipped default_chat and premier_model for Anthropic (anthropic/claude-opus-5-5) and Bedrock (global.anthropic.claude-opus-5-5); the shipped fast_model is Claude Haiku 4.5 (anthropic/claude-haiku-4-5 and global.anthropic.claude-haiku-4-5-20251001-v1:0). Claude Opus 5 stays selectable, and any assignment can be changed in Change Models. Named variants such as Google Gemini (litellm_gemini) still show their provider-specific title in the configured-provider grid once saved.
Google Gemini uses the model selected in the provider form for Test Connection. In the new-connection flow, Genesis prefers the fast_model assignment, then default_chat, then the first available model; if no model is supplied, it falls back to the provider’s catalog fast_model, currently gemini/gemini-3.5-flash-lite. The shipped litellm_gemini fast-model default is gemini/gemini-3.5-flash-lite, and you can change the assignment in Change Models.
AWS Bedrock supports both the default AWS runtime endpoint and Bedrock-compatible custom endpoints. Change Models chat tier assignments persist model identifiers exactly as AWS writes them (for example global.anthropic.claude-sonnet-4-6, including cross-region prefixes such as us. or global.). At runtime Genesis adds the bedrock/ prefix for LiteLLM routing on all chat, embedding, connection-test, and auxiliary paths; the step is idempotent when a value already includes bedrock/. For custom endpoints in API Key / Bearer Token mode, admins can choose Authorization: Bearer, x-api-key, or a custom header name, optionally strip AWS cross-region prefixes (us., eu., apac., global.) from model IDs before proxy requests, choose the Bedrock chat API mode (invoke or converse; the form’s labels are localized, and route behavior is described in Bedrock configuration request fields), enable Fake Stream to chunk non-streaming /converse responses for proxies that do not support /converse-stream, disable TLS verification with Skip SSL Verify for self-signed certificates, and supply Extra Headers as a JSON object for additional upstream headers, or leave it blank when no extra headers are needed. Enter only the custom header name, not a full Header: value pair. IAM role authentication is available only for the default AWS Bedrock endpoint; custom endpoints require API Key / Bearer Token. Test Connection now probes the selected route mode: Invoke targets /model/{modelId}/invoke with an Anthropic-style body, while Converse targets /model/{modelId}/converse with the Bedrock Converse body. When custom_auth_header is a non-bearer header such as x-api-key, Genesis adds a structurally valid SigV4 Authorization header plus the selected custom header so API Gateway-based Bedrock proxies can validate the request. For that header mode, Genesis routes the saved API key through an internal carrier (GENESIS_BEDROCK_CUSTOM_HEADER_KEY) instead of AWS_BEARER_TOKEN_BEDROCK so LiteLLM never emits Authorization: Bearer on the wire. The same routing is applied after config exports from genesis-config.yaml, across restarts, and for background paths that share the chat Bedrock config — including long-thread compression (V6) worker subprocesses, Bedrock embedding calls, and Digital Twin LLM scans. Custom endpoints may leave aws_region blank; Genesis normalizes an empty region to us-east-1 as a placeholder because the custom endpoint URL overrides routing. Some proxies return 403 for the lightweight test model even though the endpoint is reachable; Genesis surfaces that as a warning so you can save and verify with a real request. For the default endpoint, aws_account_id is optional; the form may prefill it from AWS_ACCOUNT_ID, AWS_ROLE_ARN, or an STS caller-identity lookup, but you do not need to enter it to save the provider. See Bedrock configuration request fields for its connection-test behavior. Genesis persists these custom-endpoint runtime options in App Config so the same proxy behavior is restored after config reloads and restarts. For cold-start streaming turns, Genesis lets the full llm.stream_read_timeout_seconds budget apply on the wire instead of inheriting LiteLLM’s older 600 second Bedrock streaming ceiling. Mid-stream idle gaps (after the first chunk) are governed separately by llm.active_stream_idle_timeout_seconds, which also sets the Bedrock httpx read budget. Both default to 900.0 seconds and can be tuned in Advanced Settings.
If the default AWS Bedrock endpoint is selected and providers.litellm_bedrock.connection.default_endpoint.aws_region is missing, Genesis uses the schema default us-east-1; set the field explicitly when a different AWS region is required. Custom Bedrock-compatible endpoints do not require this AWS region. For custom endpoints, AWS_BEDROCK_RUNTIME_ENDPOINT and AWS_BEDROCK_AUTH_HEADER seed providers.litellm_bedrock.connection.custom_endpoint.url and providers.litellm_bedrock.connection.custom_endpoint.auth_header; both fields default to "". Genesis reads these deployment inputs once per process, keeps them in AppConfig across runtime projection and reloads, and gives an explicit stored value—including an empty value—precedence.
LiteLLM Proxy supports four authentication mechanisms: api_key (default), static_headers, oauth, and none. Use none when the upstream gateway identifies callers by network identity instead of application credentials — Genesis sends no Authorization header on proxy requests. The Wire Transport selector (transport, default auto) controls the chat API shape. Leave it on auto to route Anthropic-family models through native Anthropic /v1/messages and other models through OpenAI-compatible /chat/completions. Caching occurs on both routes, but whether your gateway shares one upstream cache across routes and how much usage detail it reports are properties of that gateway, so check the stats panel after a change rather than assuming. On both the Genesis lab proxy and the Railway proxy, streamed OpenAI-route calls returned full prompt_tokens and both cache counters, and extended thinking behaved the same on both routes; an earlier measurement on a different proxy build saw zero cache counters and under-reported prompt_tokens. On the Anthropic route, LiteLLM sends the credential as x-api-key unless it is an OAuth credential (which Genesis sends as Authorization: Bearer) or carries Anthropic’s own sk-ant-oat prefix. Pin openai if your gateway has no Anthropic endpoint, or if it authenticates only on Authorization while you use an API key or static headers. Pin anthropic only when the gateway has no OpenAI-compatible endpoint, such as Tailscale Aperture. Set connection.transport in genesis-config.yaml or LITELLM_PROXY_TRANSPORT when bootstrapping an unset transport field. Tests connectivity and discovers models through the proxy /models endpoint; with auto, Test Connection resolves the route from the configured or discovered model family and probes /messages for Anthropic-family candidates. When a proxy canonicalizes that route with an HTTP redirect, Genesis follows up to two same-origin hops only when the redirect target path ends in /models or /models/; cross-origin redirects and redirects to login or other non-/models paths are refused so authentication headers are not forwarded to another host. In Helm- or env-backed deployments where usable proxy settings are present in the resolved APP_CONFIG snapshot (from genesis-config.yaml, saved UI/DB, or unset-field LITELLM_PROXY_* bootstrap), the AI Providers overview shows a LiteLLM Proxy card (with endpoint and masked credential preview) instead of the generic Other Providers row when runtime proxy config is present. The LiteLLM Proxy status API merges those runtime settings into the Reconfigure payload so OAuth Custom Header Descriptors and masked service-account header markers appear even when UI metadata alone is sparse. Reopening Reconfigure preserves saved descriptors when the status response omits oauth_custom_header_descriptors, falls back to the backing LiteLLM Proxy connection copy when the field is present but normalizes to an empty array, and preserves service-account header presence via oauth_service_account_header_value_keys when connection shared defaults are unavailable. Save and Reconfigure merge partial service-account shared-header submissions with existing saved values — omitted or masked header fields keep their prior value, and removing a descriptor from OAuth Custom Header Descriptors prunes its stored value. Test Connection uses the same effective descriptor list (including that fallback) and, in service_account OAuth mode, applies token_exchange headers on the token request, forwards downstream headers during client-credentials token acquisition, and sends downstream headers on the /models probe. Genesis supports the standard OpenAI-compatible response shape {"data": [{"id": "..."}]} and also temporarily accepts the Ally-specific shape {"data": {"Items": [{"model_id": "..."}]}}. When the proxy includes model_type, Genesis uses it to separate chat and embedding models; otherwise it falls back to the model identifier heuristic. Genesis normalizes proxy model identifiers by stripping transport prefixes litellm_proxy/ and proxy/ before saving assignments, populating Model Universe, and showing picker values; at runtime it adds the litellm_proxy/ prefix back for all LiteLLM library calls — chat, embeddings (document indexes and Digital Twin semantic indexing), long-thread compression (V6), and other auxiliary paths. For static_headers and OAuth modes, resolved downstream headers are sent as extra_headers on these embedding calls as well as on chat. When transport is anthropic, OAuth credentials are also sent as Authorization: Bearer <credential> so an Anthropic-compatible proxy can authenticate the request through its bearer transport. For admin model discovery, when auth_mechanism is oauth but OAuth client settings are incomplete, or when static_headers configuration is missing or invalid, Genesis falls back to API-key discovery headers when a proxy API key is configured (including via default_env_var bootstrap). OAuth ownership is controlled by oauth_credential_policy: per_user_oauth (interactive browser grants per user), service_account (admin-managed client-credentials grant for non-interactive runs), or per_user_oauth_with_service_fallback. When the effective policy is per_user_oauth, Genesis skips admin-side service-account /models discovery on save and test because runtime calls use each user’s browser grant. When LiteLLM Proxy is configured for per-user OAuth, Genesis resolves the request in the acting user context so the correct user-scoped token is used. At runtime, OAuth custom header descriptors use the resolved LiteLLM Proxy admin snapshot first and fall back to the shared backing LiteLLM Proxy connection (litellm_proxy.shared) when that list is empty after normalization. For OAuth-backed LiteLLM Proxy modes, if the provider rejects a cached token, Genesis clears the cached OAuth token and retries the request once automatically before surfacing an authentication error. For API-key-backed LiteLLM Proxy mode, if the provider rejects the saved key during runtime, Genesis reloads the saved proxy credentials and retries once automatically before surfacing an authentication error. A later successful proxy call clears the transient validation error state. In Helm-managed deployments, bootstrap OAuth settings from genesis-config.yaml as shown in the infrastructure-managed section above; runtime LiteLLM Proxy admin config is snapshot-first from the resolved APP_CONFIG provider paths (providers.litellm_proxy.*) — explicit DB/UI or file-backed values always beat legacy LITELLM_PROXY_* env vars, which only seed unset fields via default_env_var / secret capture at startup.

In the Beta AI Providers form, enter service-account header values alongside their OAuth custom-header descriptors on Configure; leave a value blank to keep its saved value. The OAuth credential policy is displayed read-only on this form and is managed through providers.litellm_proxy.settings.oauth_credential_policy (default per_user_oauth). The Shared Service Account status row is Unused with per_user_oauth; with service_account or per_user_oauth_with_service_fallback, it is Ready only when the proxy base URL, token URL, client ID, and client secret are set, every required OAuth header has a value, and the server reports no saved-header issue. Otherwise it shows Needs setup, displaying the server’s header issue when one is returned.

The selected Wire Transport is saved as providers.litellm_proxy.connection.transport; saving the provider in the UI no longer replaces that selection with LITELLM_PROXY_TRANSPORT. That environment variable bootstraps an unset transport field.

Wire Transport applies to multi-turn chat turns only. One-shot utility completions — including structured-output helpers such as the Create Mission blueprint recommendation wizard, create_blueprint thread-based blueprint generation (CREATE_BLUEPRINT_FROM_THREADS), auto-titling, and thread compression summaries — stay on the OpenAI-compatible proxy protocol even when Wire Transport is anthropic. The native Anthropic transport preserves prompt caching for chat but does not enforce response_format; routing utility calls through the OpenAI-compatible path keeps structured JSON outputs reliable.

If you’re setting up Databricks in OAuth mode and do not yet have a saved Databricks connection, Genesis keeps Config -> Connections available so you can create and authorize that connection before returning to AI Providers.

For LiteLLM-backed chat calls, Genesis normalizes usage metadata into the standard fields prompt_tokens, completion_tokens, total_tokens, cache_read_input_tokens, cache_creation_input_tokens, and cached_tokens even when upstream providers report cache usage through different LiteLLM response shapes. When LiteLLM exposes trace identifiers, Genesis also records provider_request_id and provider_session_id; for LiteLLM Proxy calls, metadata can additionally include execution_origin.

Anthropic-style prompt caching is enabled by default. App Config stores the setting as providers.litellm_anthropic.cache (default true) and exports it to ANTHROPIC_CACHE at startup unless that environment variable is already set. On startup, Genesis repairs legacy installations where that App Config row was persisted as false with default schema provenance; an explicit operator choice to disable caching (false from the UI, genesis-config.yaml, or a pre-set ANTHROPIC_CACHE env var) is preserved.Caching continues to work for direct Claude routes and now also stays enabled for Claude-compatible proxy routes such as LiteLLM Proxy when ANTHROPIC_CACHE=true. When LiteLLM Proxy Wire Transport is anthropic, Genesis aligns prompt-cache markers with the native /v1/messages wire path. The ANTHROPIC_CACHE_PROXY_HEURISTIC, ANTHROPIC_CACHE_CHECKPOINT_MODE, and ANTHROPIC_CACHE_CHECKPOINT_ROLLING_ANCHOR settings each default to true; the proxy heuristic lets Genesis still emit cache intent when the provider path is proxy-mediated but the resolved model or provider is Claude-compatible. When ANTHROPIC_CACHE_CHECKPOINT_MODE=true, Genesis marks the head system prompt, the deterministic cache-checkpoint message, and either (a) a rolling deep-history anchor a few messages behind the newest user turn on long threads, or (b) the latest user message on short threads with no deep history yet. Set ANTHROPIC_CACHE_CHECKPOINT_ROLLING_ANCHOR=false to revert to the legacy behavior that marked only the latest user turn as the deep breakpoint. The rolling anchor keeps the cached prefix stable across turns because per-turn date/time context is appended to the newest user message at the LLM-call boundary, not injected into the system prompt. In provider-request exports, those cache_control markers stay attached to messages[*].content[] blocks so copied JSON and curl payloads match Anthropic-compatible chat APIs more closely.

Databricks chat rate-limit recovery can also use a provider retry_after value from the JSON error body when a standard Retry-After header is absent. Configure the shared recovery window in Advanced Settings. In chat, provider rate-limit waits appear in the completion overlay with a retry countdown and attempt number; see Chat and Threads.

Output-token defaults for LiteLLM-managed models

For providers that run through the LiteLLM runtime, Genesis injects a model-aware max_tokens value on chat turns whenever the request does not already include one. The same injection applies to Claude models on LiteLLM simple_completion utility paths — including structured-output helpers such as create_blueprint thread analysis, auto-titling, compression summaries, and blind spec-author compiles — when those callers do not set max_tokens. If the caller explicitly sets max_tokens, Genesis preserves that value (long-output utility callers such as the spec author use this to avoid truncating large JSON even when a frontier model is not yet listed in the table below).

Technical model identifier match	Default `max_tokens`
`claude-opus-5-5`, `claude-opus-5`, `claude-fable-5`, `claude-opus-4-8`, `claude-opus-4-7`, `claude-opus-4-6`, `gpt-5.5`, `gpt-5.4`, `gpt-5.2`	`64000`
`claude-sonnet-5`, `claude-opus-4-5`, `claude-sonnet-4-7`, `claude-sonnet-4-6`, `claude-sonnet-4-5`, `claude-haiku-4-5`, `gpt-5`	`32000`
`gpt-6.1-sol`, `gpt-6-astra`, `gpt-6-luna`	`128000`
`gemini-3.8-flash`, `gemini-3.5-flash-lite`	`65536`
`anthropic.claude`, `bedrock/claude`, or any unmatched model	`16384`

Genesis resolves this budget from the technical model identifier using a longest-match-first lookup, so a specific match such as claude-opus-4-7 wins over family fallbacks such as anthropic.claude or bedrock/claude. Claude-5 frontier models (claude-opus-5-5, claude-opus-5, claude-fable-5-1, claude-fable-5, claude-sonnet-5) — including anthropic/ and global.anthropic. prefixed wire forms — mirror the caps of their nearest Claude 4.x tier peers in the table above. For Snowflake Cortex, the 64000 API ceiling is applied to claude-opus-5 and claude-opus-4-8. Genesis resolves this per-model cap in both the standard Cortex REST and OpenAI-compatible SDK modes. Cortex model identifiers containing llama, mistral, mixtral, or openai-gpt use an 8192 output-token cap; other known Cortex models retain their model-specific caps, and an unrecognized Cortex model falls back to 15000. The providers.cortex.settings.max_output_tokens setting defaults to null; set it deliberately, or set CORTEX_MAX_OUTPUT_TOKENS, to apply one explicit cap to every Cortex model instead of the per-model table. On thinking-capable Claude 5 models, completion_tokens includes extended thinking tokens, so a 64000 cap typically yields about 35,000–40,000 visible output tokens; use chunked writing for larger outputs.

When chat-tier resolution yields a malformed LiteLLM wire model (for example bedrock/us. with no model id after the route prefix), Genesis logs a warning and treats the tier as unresolved instead of routing the mystery string (which would silently fall back to the 16384 family default). Fix the underlying Change Models assignment or env-tier variable so the resolved wire model ends in a full technical identifier.

If a streamed tool call still reaches the output limit, Genesis treats the turn as truncation when the provider reports a length/max_tokens finish reason or when completion_tokens reaches the configured max_tokens cap. Snowflake Cortex and some other providers can underreport finish_reason (for example stop or tool_calls) while still consuming the full output budget. Genesis tags the last in-flight tool call—even when its accumulated arguments are syntactically valid JSON but missing required fields—instead of repairing partial JSON and surfacing a misleading required-field validation error. Agents recover by retrying the work in smaller chunks.

For reproduction or integration tests that need a lower output budget on LiteLLM-managed chat paths, set GENESIS_MAX_OUTPUT_TOKENS_OVERRIDE to a positive integer. Genesis uses that value for every model’s injected max_tokens instead of the per-model defaults in the table above. Invalid values are logged and ignored.

When a one-shot LiteLLM simple_completion utility call — auto-titling, thread compression summaries, blueprint thread analysis, and similar helpers — exceeds the model context window, Genesis retries once with a truncated prompt: it keeps the head and tail of the input and elides the middle with a marker noting how many characters were dropped. If the excerpt still cannot fit or truncation would not shrink the prompt, Genesis surfaces a typed context-limit failure (Context length exceeded. Please reduce the input size.) instead of looping. Main multi-turn chat turns use separate trimmer and compression paths; this recovery applies only to auxiliary simple_completion calls.

For LiteLLM-backed and Cortex REST chat calls, LLM CALL START, LLM CALL END, and LLM CALL FAIL server log lines append a structured llm_metrics suffix (for example

llm_metrics provider=litellm_bedrock engine=litellm     model=... stream=true duration_ms=... ttft_ms=... prompt_tokens=...     completion_tokens=...

). The human-readable prefix still includes finish_reason=<value> and max_tokens=<value> on END lines. Use both together when correlating provider flips or diagnosing truncated responses: finish_reason=length (or max_tokens) means the call hit its output-token cap. When completion_tokens is at or above max_tokens, treat the turn as capped even if finish_reason looks normal (for example Cortex stop or tool_calls). LiteLLM also normalizes Anthropic’s max_tokens stop reason to length.

For integration debugging or reproduction, set GENESIS_CAPTURE_COMPLETIONS=1 (or true, yes, or on) to capture LLM request payloads to disk. Capture is disabled by default and has zero overhead when unset. Secrets are redacted before persistence.LiteLLM-backed chat calls (OpenAI, Azure OpenAI, Databricks, LiteLLM Proxy, Bedrock, Anthropic, and other LiteLLM routes) write redacted dumps under bot_storage/litellm_calls/: level-(a) files capture the final call kwargs at the LiteLLM boundary (litellm_call_*), and level-(b) files capture the assembled wire request body and headers via LiteLLM’s pre-API-call hook (litellm_wire_*). Level-(b) capture applies to main sync and async chat turns only — one-shot probe and retry helper paths record level-(a) only. Known secret keys (api_key, extra_headers, AWS credentials, vertex_credentials, azure_ad_token) and auth-related header values are replaced with a redaction placeholder; the client object is omitted.

When a LiteLLM-backed provider is active, Genesis does not treat a leftover CORTEX_MODEL environment variable as the LiteLLM default model. Set the provider’s models in Change Models (or with PUT /api/config/models/main/assignments) so auxiliary LiteLLM paths fail clearly when no model is configured rather than silently routing through an OpenAI placeholder id.

Claude 5 token pricing

Genesis bundles token-price entries for Claude 5 models so Thread Cost Analysis can use catalog pricing when LiteLLM’s remote price map is unavailable, including in offline or air-gapped deployments. No setting is required. The entries cover claude-opus-5-5, claude-opus-5, claude-sonnet-5, claude-fable-5-1, and claude-fable-5 under their bare Anthropic names and matching global.anthropic.* Bedrock IDs, plus the corresponding databricks-claude-* serving endpoint IDs. Bedrock regional pricing is pinned for us, eu, apac, au, and jp profiles of Opus 5-5, Opus 5, and Sonnet 5; us, eu, apac, and au profiles of Fable 5; and us and eu profiles of Fable 5-1. The us-gov profile is priced for Opus 5-5, Opus 5, Sonnet 5, and Fable 5-1. Other regional or GovCloud Claude 5 IDs do not fall through to a base-model price.

GPT-6 token pricing

Genesis includes built-in token-price entries for gpt-6.1-sol, gpt-6-astra, and gpt-6-luna so Thread Cost Analysis can estimate costs when LiteLLM’s remote price map is unavailable, including in offline or air-gapped deployments. No setting is required. Genesis uses flat rates and does not model OpenAI’s higher rates above 272,000 input tokens (2x input and cache rates, and 1.5x output rates).

Temperature parameter allowlist

Genesis gates custom temperature on a per-model allowlist in config/llm_config.yaml under llm_parameter_overrides.temperature_supported_models. The shipped default is an empty list, so Genesis omits temperature from provider requests and the model uses its own sampling defaults. Both the main chat loop and auxiliary LiteLLM simple_completion paths (thread compression, debrief summaries, auto-titling) consult the same allowlist via supports_custom_temperature. A caller may pass temperature, but Genesis forwards it only when the resolved model id is on the list.

Some models — for example Bedrock global.anthropic.claude-opus-4-7 — reject or deprecate temperature with a 400 error. LiteLLM’s drop_params cannot strip it because LiteLLM’s static metadata still reports temperature as supported for the family. Keep such models off the allowlist unless your provider documents explicit support.

Allowlist entries are matched after normalization: Genesis strips the provider prefix up to the first / and lowercases the remainder. To allowlist global.anthropic.claude-opus-4-7, add that AWS-native identifier — not the bare suffix claude-opus-4-7 and not a bedrock/ wire-form prefix.

llm_parameter_overrides:
  temperature_supported_models:
    - global.anthropic.claude-opus-4-7

Reasoning effort parameter gating

Genesis forwards the OpenAI reasoning_effort request parameter only when the resolved model accepts it. OpenAI, Azure OpenAI, and Databricks run on the LiteLLM engine. For models other than the GPT-6 models listed below, Genesis forwards reasoning_effort only when LiteLLM’s capability signals agree for the resolved model — supports_reasoning, a chat mode (not Responses), a model-specific entry in LiteLLM’s model map, and reasoning_effort in the provider’s supported- parameters list. This keeps Claude and other non-reasoning models from receiving the parameter. Azure deployments whose wire name is opaque can opt in via providers.azureopenai.settings.deployment_base_models. For GPT-6, Genesis checks the requested effort against OpenAI’s published per-model levels: gpt-6.1-sol and gpt-6-astra accept low, medium, high, xhigh, and max; gpt-6-luna also accepts none. minimal is not supported by these models. On an offline installation using LiteLLM’s bundled model-price map, LiteLLM can drop xhigh when the map does not declare it, so the model uses its default effort for that request. When a caller supplies reasoning_effort but the resolved model does not support it, Genesis omits the parameter from the provider request instead of forwarding it. Providers such as Databricks reject unsupported kwargs with 400 reasoning_effort: Extra inputs are not permitted; dropping the parameter keeps auxiliary paths (for example compression summaries that pin reasoning_effort='low') from failing on those models.

Inherited chat tier

When you open Change Models for a configured chat provider, Genesis also lets you set Inherited Chat Tier. This provider-level default can be Premiere, Main, or Fast. Genesis uses it for new and legacy chats whenever neither the agent nor the thread has an explicit tier override. When you save a main chat model in Change Models, Genesis assigns it to Supervisor, Harvester, and Knowledge Server as well, except for a role still managed by Genesis defaults, which keeps its own catalog seed. The shipped main chat defaults are gpt-6.1-sol for default_models.openai.default_chat, the gpt-5.5 deployment name for default_models.azureopenai.default_chat, databricks-claude-opus-5 for default_models.databricks.default_chat, claude-opus-5 for default_models.cortex.default_chat, anthropic/claude-opus-5-5 for default_models.litellm_anthropic.default_chat, and global.anthropic.claude-opus-5-5 for default_models.litellm_bedrock.default_chat. The Databricks and Cortex Supervisor, Harvester, and Knowledge Server seeds therefore resolve to those Opus 5 models. The OpenAI catalog seeds supervisor and premier_model on gpt-6.1-sol, and fast_model, harvester, and knowledge_server on gpt-6-luna. The Azure OpenAI catalog seeds every role on gpt-5.5 except fast_model, which is gpt-5-mini. Genesis applies those seeds at startup and on Use Genesis defaults to every role still managed by Genesis defaults, so a default-managed OpenAI Harvester or Knowledge Server stays on gpt-6-luna, and an Azure OpenAI one on gpt-5.5, across saves and restarts. Azure assignments are deployment names: Genesis does not replace a stored Azure deployment with a catalog seed when provider settings are saved or defaults are reapplied. When an Azure role is empty, its stored main chat deployment is used before falling back to that role’s catalog seed. The LiteLLM OpenAI provider uses prefixed model identifiers; see Provider seed defaults for main assignments for its shipped default_chat and fast_model values. Inherited Chat Tier controls which model tier Genesis chooses by default, but it does not directly set the working context budget. Agent Center can apply a per-agent Context Soft Limit, and the Thread Details drawer can narrow that limit again per thread or first turn. When no soft-limit override is set, Genesis uses the resolved model default and still clamps overrides to stricter environment or legacy ceilings when present. When that Thread Details drawer needs to show the active model for an existing conversation, Genesis can also reuse the most recent assistant-used model and provider for the thread when available, so the model view stays aligned with the last completed response instead of waiting for another turn.

Model assignment sources

Genesis records how each provider task-type model was chosen in APP_CONFIG under providers.<provider>.model_selection_mode.<task_type>:

Source value	Meaning
`default`	Genesis-managed — values supplied by an environment-variable or schema default, inferred catalog defaults, or shipped provider defaults. These values are not treated as operator pins; Genesis may update them when defaults evolve or when a provider save reapplies seed defaults.
`override`	Operator-managed via Change Models (for example Override Genesis defaults mode) or an explicit `PUT /api/config/models/main/assignments` with `assignment_sources`. These assignments stay sticky.

When you re-save a provider connection — for example rotating an API key or editing endpoint settings — Genesis reapplies packaged default models only for task types whose source is default. Task types you pinned with override keep their saved model ids. During the one-time LLM defaults migration on upgrade, Genesis reloads the current APP_CONFIG before classifying assignments, resets only Genesis-managed task types that have concrete provider defaults, and preserves an explicit override when its stored model is present. Providers without concrete defaults are left unchanged. When no selection source was recorded for an existing assignment, Genesis treats the model as default-managed only when it is empty or exactly matches today’s shipped default for that provider and task type. Any other existing model is treated as an operator override and remains unchanged. Genesis logs these declined default upgrades at warning level; to use the current shipped model, re-pin the tier in Change Chat Models via Use Genesis defaults.

LiteLLM Proxy model selection

When you save or update a LiteLLM Proxy configuration, Genesis discovers models from the proxy, enriches each alias with metadata from the proxy /v2/model/info catalog when available (underlying model id, token caps, mode, and capability flags), and materializes the result into Model Universe with source_type: discovered. Discovered proxy rows appear on Model Universe with their underlying model shown in the model details dialog when known. Custom operator-added rows remain authoritative over discovered rows with the same technical name. On the first save when no chat provider is explicitly active in APP_CONFIG, Genesis auto-activates LiteLLM Proxy only when discovery yields usable tier assignments or you supplied an explicit Model on the form. The Snowflake Cortex zero-config default does not count as an explicit active provider — a freshly configured proxy can still take over when llm.active_provider was never set. If discovery fails or the proxy advertises no models and you left Model blank, Genesis saves the connection but does not flip the provider active (avoiding an empty default that would fall back to OpenAI). Re-saving after Approve External Access on SPCS, or after fixing endpoint/credentials, can activate the proxy once models are reachable. When the API returns a non-blocking warning_message, AI Providers surfaces it as a warning toast after save — for example guidance to approve External Access and save again on SPCS, or a note that the proxy was saved but not activated. For LiteLLM Proxy, providers.litellm_proxy.models.default_chat, providers.litellm_proxy.models.fast_model, and providers.litellm_proxy.models.premier_model have schema defaults of null. When an environment-selected default_chat is present at startup and the stored fast_model or premier_model assignment is empty, Genesis fills that role from the main model. If no fast model is configured and fast-tier work falls back to default_chat, Genesis sends it as a main-tier request rather than asking the proxy for a missing fast alias. Assign a dedicated model in Change Models when the proxy provides separate fast or premier aliases. When you open Change Models for a configured LiteLLM Proxy provider, Genesis serves the picker from materialized Model Universe entries when present. Opening Change Models, the Embeddings model step, or the models step in the new-connection drawer also triggers POST /api/config/model-universe/refresh?provider=litellm_proxy so models added to the proxy after the connection was saved appear without re-saving that connection. Tier assignments are not re-inferred on refresh — only the universe snapshot is updated. When /models discovery fails during save, refresh, or self-heal materialization, Genesis skips universe updates and preserves any existing materialized rows; the refresh API reports Could not refresh the model list; the saved list is unchanged. When the universe is still empty, Genesis idempotently runs discovery and materialization on that read path so underlying-model badges can appear without re-saving the provider connection. Before the first successful materialization, Genesis falls back to live /models discovery so the picker is not empty on first setup. Genesis does not merge recommended-default catalog entries into these pickers. When no tier assignments are persisted yet, Genesis read-only infers premiere/main/fast defaults from the materialized universe to preselect the Change Models tiers — this inference never persists or activates the provider. In Override Genesis defaults mode, each tier (Premiere, Main, Fast) uses an editable combobox: pick a discovered model from the dropdown or type a custom proxy model name (for example a deployment alias the proxy accepts but does not advertise on /models). When an underlying model is known, the picker shows a badge with the resolved backend model id and includes it in search text. In Use Genesis defaults mode, the per-tier inputs are disabled and Genesis shows the inherited defaults. Tier defaults inferred on save score aliases together with their underlying model names so generic proxy aliases (for example all-team-models) can still map to the correct Claude or GPT family. Main takes the Claude version Genesis ships for the Anthropic provider (default_models.litellm_anthropic, currently Claude Opus 5.5), or the newest Opus the proxy offers; a Model you set on the proxy form still decides Main. Premiere and Fast stay on Main’s route — the provider named in front of claude in the alias or its underlying model, such as bedrock- or snowflake-. On that route each takes the shipped version (Claude Opus 5.5 for Premiere, Claude Haiku 4.5 for Fast), else the newest model of the family there; a Haiku 4.5 offered only through another route does not move Fast off Main’s route. Only when Main’s route has no model of the family does Genesis look at other routes, and with none anywhere the tier falls back to the Main model. Genesis surfaces discovery state at the bottom of the modal:

Stale selection (yellow): a saved or typed model is not in the proxy’s current /models list. Genesis highlights the row but does not block saving — the proxy may still serve unlisted models.
Empty list (yellow): the proxy responded successfully but advertised no models.
Discovery error (red): Genesis could not fetch /models (network failure, HTTP error, or invalid response). The banner includes a one-line error summary such as HTTP 503.

Reopening a model-picking screen inside the throttle window (llm.proxy_universe_refresh_interval_seconds, default 300) skips the proxy round-trip and reuses the saved universe. Set the interval to 0 in Advanced Settings to re-discover on every open. The UI reloads chat and embedding model lists only when the refresh reports models were added or removed (changed: true).

LiteLLM Proxy embedding dimensions

When LiteLLM Proxy is the active embedding provider on the Embeddings tab, Genesis must resolve each model’s output_vector_size before creating document indexes and other vector-backed features. LiteLLM’s local model registry does not include embedding metadata for proxy-routed SKUs, so Genesis applies built-in dimension mappings for common proxy embedding models:

Technical model identifier	`output_vector_size`	`embed_batch_size`
`amazon-titan-embed-text-v1`	`1536`	`25`
`amazon.titan-embed-text-v1`	`1536`	`25`
`amazon-titan-embed-text-v2`	`1024`	`25`
`amazon.titan-embed-text-v2:0`	`1024`	`25`
`text-embedding-3-large`	`3072`	`100`
`text-embedding-3-small`	`1536`	`100`
Any other proxy embedding model	`1536`	`25`

Genesis matches saved picker values and runtime model names with a case-insensitive substring lookup against this table, then falls back to the last row when no specific match is found. If your proxy exposes an embedding model whose true vector width is not 1536 and the model name is not listed here, document index creation may fail or allocate the wrong vector width until Genesis adds an explicit mapping.

Verify the embedding model you select on the Embeddings tab appears in the table above (or is a name that contains one of those identifiers). Proxy aliases that do not substring-match a known SKU rely on the 1536-dimension fallback.

Embedding model setup in the connection wizard

Providers that expose embedding models in Change Models or the New connection wizard include OpenAI, Azure OpenAI, Snowflake Cortex, Databricks, AWS Bedrock, Google Gemini (gemini / litellm_gemini), and LiteLLM Proxy (litellm_proxy, via live /models discovery). Anthropic is chat-only — it has no embedding models and does not show an embedding picker. When you open Change Models for a provider that is not the active embedding provider, Genesis does not pre-select the globally active embedding model in that provider’s picker — each provider’s embedding section reflects only that provider’s saved preference (or starts empty in edit mode). In New connection create mode, Genesis turns the embedding toggle on and pre-selects the first available embedding model so new providers are ready for embeddings out of the box. Saving stores the choice as a per-provider preference at providers.<provider>.models.embedding_model. When no global embedding identity exists yet and the on-disk document corpus is empty, Genesis may also adopt that provider/model as the first active embedding through the first-save adoption rule (see below) — the UI shows a success or warning toast from the save response’s embedding_adoption outcome. Otherwise the global active embedding stays unset until you explicitly Set Active for Embeddings on the Embeddings tab (or call PUT /api/config/models/embeddings/config with activate: true), and no reindex runs. When you later activate that provider for embeddings, Genesis uses the saved providers.<provider>.models.embedding_model before falling back to the packaged yaml default.

First-save embedding adoption

When no embedding identity is persisted yet, provider saves that include an embedding model preference — Change Models, the New connection wizard, and PUT /api/config/models/embeddings/config with activate: false — may attempt a one-time adoption of that provider/model as the global active embedding. Genesis only writes the pointer when the on-disk corpus is provably empty; existing user documents block automatic adoption so Genesis does not silently point at the wrong embedding space. Provider-save and embedding save-only responses may include embedding_adoption:

Outcome	UI behavior
`adopted`	Success toast — the saved provider/model is now the active embedding.
`refused_corpus_present`	Warning toast — adopt manually from Embeddings or use corpus recovery (below).
`refused_evidence_unreadable`	Warning toast — Genesis could not verify the corpus was empty.
`refused_not_eligible`	Warning toast — the saved provider/model cannot be adopted.
`refused_save_failed` / `refused_busy`	Warning toast — adoption did not complete; retry after the save finishes.
`pointer_already_set` / `override_active`	No toast — an embedding identity is already in effect.

See Embedding configuration endpoints for the full API field reference.

Recovering stranded document corpora

When document indexes exist on disk but no embedding identity resolves (unset or incomplete), the Embeddings tab shows a Recover document corpora card below the no-active-embedding message. The card lists on-disk Chroma collections Genesis found that are not the active embedding space, reconciled from collection metadata:

Corpus status	Meaning
`proposable`	A complete provider/model identity was recorded and can be adopted.
`conflict`	Two complete identities disagree — Genesis shows both and offers no adopt button.
`indeterminate`	Only a provider (or directory name) was recorded, never a model — manual setup required.
`unreadable`	The collection could not be read — no trustworthy identity to offer.

For a proposable row, Adopt calls PUT /api/config/models/embeddings/config with activate: true and test_before_save: true, switches the global embedding to that identity, and starts background re-embedding. The same card appears on both Stable (/config/llm-providers/) and Beta (/config/ai-providers/) Embeddings tabs. Operators can also inspect corpora through GET /api/config/models/embeddings/stranded-corpora — see Stranded embedding corpora response.

Document indexes and embedding-model changes

Genesis stores document-index embeddings in model-specific Chroma collections named {provider}_{sanitized_model}_index. Listing, search, and the Config → Documents page always use the collection for the active embedding.active_provider and embedding.active_model. When you change the embedding provider or model, Genesis re-points to the new collection. Indexes that still exist only in a prior model-specific collection are not deleted — they remain on disk — but they are not searchable until re-embedded. Genesis surfaces them instead of hiding them:

Config → Documents shows a Needs reindex badge on affected indexes.
GET /api/indexes and _document_index action GET_INDICES_STATS include those indexes with needs_reindex: true and the file count from the stranded collection.

Saving a change on the Embeddings tab (or PUT /api/config/models/embeddings/config with activate: true) switches the global active embedding and starts background re-embedding only when replacing an existing active embedding. On first-time embedding setup — when no prior embedding.active_provider and embedding.active_model were saved — Genesis skips the reindex because no documents were indexed under a prior model. When reindexing does run, Genesis performs a full sync from prior {provider}_*_index collections for indexes missing in the active collection (not an incremental skip based on last_indexed_at). Progress is available via GET /api/config/models/embeddings/reindexing-status. To restore indexes immediately without re-embedding, switch back to the prior embedding model so the original collection becomes active again. The in-product reindexing status banner is shown only to users with access_config_panel. For Snowflake Cortex, when no explicit embedding.active_model is saved, Genesis resolves the configured yaml default (e5-base-v2) before the recommended-model catalog order. Startup migration aa013_cortex_embedding_default_pin pins existing unset Cortex deployments to that prior effective default on upgrade.

Embedding provider validation and coherence

Genesis validates and normalizes embedding configuration at read time, on save, and once at startup so document indexing does not silently route through the wrong backend (for example a Cortex-only model through OpenAI on SPCS). No OpenAI fallback. When no complete embedding identity resolves — no saved embedding.active_provider / embedding.active_model pair (whether stored or seeded from EMBEDDING_PROVIDER / EMBEDDING_MODEL) and no eligible Cortex mode override — Genesis leaves embeddings unavailable. It does not infer a default OpenAI embedding model from chat configuration or ambient OPENAI_API_KEY. Document-index writes fail closed with error_type: "embedding_not_configured" (or provider_not_configured when a pointer exists but credentials are missing). For REST document uploads, these errors are returned as HTTP 409 if detected before the upload is accepted. If the provider becomes unusable after a 202 acceptance, the background upload instead finishes with failed; see Manage Document Indexes over REST for polling and failure details. Configure embeddings explicitly on the Embeddings tab, adopt a stranded corpus (see Recovering stranded document corpora), or set embedding.active_provider / embedding.active_model in genesis-config.yaml. Provider/model coherence. embedding.active_provider and embedding.active_model (and legacy EMBEDDING_PROVIDER / EMBEDDING_MODEL env vars) are read as independent values. A stale or partial write can pair a Cortex-only catalog model such as e5-base-v2 with a non-Cortex provider. When the deployment can serve Cortex embeddings — Snowflake Native App / SPCS, or Cortex configured with public REST access — Genesis corrects that mismatch to provider: cortex and logs a warning. Only this specific mismatch is corrected; other provider/model pairs pass through unchanged. Providers with arbitrary customer-defined model namespaces (azureopenai, litellm_proxy) are never auto-corrected — a name that happens to match a Cortex model id is treated as coincidental, not misconfiguration. Save and connection test. On the Embeddings tab (and PUT /api/config/models/embeddings/config with default test_before_save: true), Genesis pre-checks credentials before calling the embedding backend: single-API-key providers (openai, anthropic, gemini) must have a saved key or matching env var; databricks requires both a saved token and workspace URL. Missing credentials return a clear error instead of an opaque connection failure. When test_before_save is false, a successful save may still include details.warning if the saved embedding provider differs from llm.active_provider and the embedding provider has no configured API key — embedding calls will fail until credentials are added. In Config -> AI Providers, connection and model tests include an embedding check only when an embedding model is configured for that provider; they do not substitute the model that would be selected during activation. The Embeddings step tests the model activation would use. See the model test API for request behavior and timeout. Startup smoke test. After syncing embedding configuration at boot, Genesis runs a one-time embedding connection test (5-second timeout for LiteLLM-routed providers; the Cortex path does not issue that live call). Failures are logged at ERROR with a message such as failed startup smoke test but do not block startup. Search Pulse Live Logs or server logs when document indexing fails immediately after a restart. Embedding health notice. The Embeddings tab and the Beta AI Providers hero card query Digital Twin for its current embedding verdict when the page opens. The notice does not infer health from a saved provider or model: ok means Twin has observed successful embedding calls, systemic_failure means Twin has observed a persistent failure, and unverified means Twin cannot yet establish either result. If Twin is unavailable, restarting, or has no embedding client, the notice shows an unknown status. The check is bounded to 5 seconds and does not block the provider and model configuration from loading.

Deliberately choosing a new embedding model (for example moving from e5-base-v2 to another Cortex embedding SKU) re-embeds all stranded documents and incurs embedding cost. Reverting to the prior model restores the original collection without data loss when the prior collection is still on disk.

Digital Twin reload behavior

When an embedding provider or embedding model changes, Genesis sends RELOAD_EMBEDDING_CONFIG to Digital Twin so Context Graph and semantic indexing flows can pick up the new runtime. When LiteLLM Proxy is the active embedding provider, the reload payload includes the resolved api_base, api_key, and extra_headers from the proxy runtime (for example OAuth downstream custom headers or static_headers entries) so Twin-side embedding calls authenticate the same way as Genesis-side embedding requests. When Twin’s lineage tool is registered, saving provider connection settings also resends the persisted embedding provider and model. This lets Twin use credentials or settings that became usable after it started, without a Genesis restart. Re-saving an unchanged embedding identity also resends it but does not reindex documents. If Twin is not running yet, it reads the current configuration when it starts. When AWS Bedrock is the active embedding provider and uses a custom endpoint with a non-bearer custom_auth_header, the reload also carries the resolved litellm_kwargs in extra. Twin sends those per-request kwargs with every embedding call, including the gateway API key required by custom-header authentication. Default-endpoint, bearer, and IAM Bedrock embedding calls continue to use AWS environment credentials. For how Twin receives provider credentials in a Databricks App, see Genesis as a Databricks App. Genesis also resolves the model identifier for Twin before sending the reload. Providers routed through LiteLLM receive a provider-qualified model name, such as databricks/<model>, so Twin can route embedding calls to the selected backend. Snowflake Cortex and LiteLLM Proxy keep their bare model names because those backends identify the provider separately. When the active chat provider or chat model changes, Genesis also sends RELOAD_LLM_CONFIG to Digital Twin so Twin-side LLM flows pick up the active runtime. This happens after Genesis restores provider state on startup, after an AI-provider environment sync, and when the main chat assignment changes in Change Models. Twin’s scanner does not always use the main chat model: Genesis resolves the chat model from llm.twin_scanner_model_tier (default fast) against the provider’s tier assignments and forwards that model instead. Changing the tier through Context graph spend or PUT /api/config/models/twin-scanner-tier persists the setting and re-syncs Twin immediately without a restart. If the explicit chat assignment is cleared, Genesis falls back through the same tier resolution path before notifying Twin. If one of these updates happens while FastAPI is still starting, Genesis uses GENESIS_TWIN_STARTUP_NOTIFY_TIMEOUT as the self-call timeout so startup is not blocked waiting on a best-effort Twin reload. The startup timeout defaults to 1 second, and invalid startup values also fall back to 1. Outside startup, the Twin notify timeout remains 30 seconds.

Customer-facing notes

If AI Providers shows configured provider cards but chat or auxiliary LLM paths report no active provider, search server logs or Pulse Live Logs for LLM STATE: no active provider, but — Genesis flags this degraded state when llm.active_provider was lost while provider credentials remain. Open Config → AI Providers, set the intended provider as default, and save.
When a chat turn fails because the connected provider rejected the request, Genesis surfaces an inline provider-error notice in the thread (see Chat and Threads → AI provider errors). Use Test Connection on the affected provider card and review credentials, model assignments, permissions, and quota before retrying the conversation.
When chat cannot reach a provider, the inline notice names the failure. In Snowpark Container Services (SPCS), DNS and network failures are reported as External Access Not Configured; check that the provider’s External Access Integration is configured and approved and that the privilege is granted to the Genesis app. Outside SPCS, a DNS notice means the machine running Genesis could not resolve the provider host; check its network and VPN. A network-route notice points to connectivity, VPN, proxy, or firewall issues, while a generic connection notice also calls out the provider endpoint configured under Settings → Configure LLMs.
When a provider save or API-key rotation fails Test Connection, Genesis restores the prior working credential automatically. Fix the reported validation error and save again — chat should keep using the last good key until a save succeeds. If the error mentions that previous credentials could not be restored, re-enter the last known-good key manually.
When document indexing or semantic search fails after a server restart, search Pulse Live Logs or server logs for failed startup smoke test. Genesis validates the active embedding provider once at boot and logs missing credentials or connection failures before the first index call. See Embedding provider validation and coherence.
When Azure OpenAI runs through the LiteLLM engine and a streamed turn produces no first token within providers.azureopenai.settings.stream_fallback_timeout (default 8.0 seconds), Genesis automatically retries that turn once in non-streaming mode before surfacing an error. Disable with providers.azureopenai.settings.stream_fallback: false in Advanced Settings.
When Databricks runs through the LiteLLM engine and providers.databricks.settings.stream_fallback is true, Genesis retries a streamed turn once in non-streaming mode when no first token arrives within providers.databricks.settings.stream_fallback_timeout (default 2.0 seconds). Stream fallback is off by default for Databricks — enable it in Advanced Settings or genesis-config.yaml when your serving endpoint needs it.
When a streaming turn drops mid-flight because the provider or gateway closed the connection, or returns a brief HTTP 500/502 gateway error (common with AWS Bedrock and LiteLLM Proxy routes), Genesis automatically retries up to llm.transient_error_retries times when no user-visible text or tool calls were produced yet. If retries are exhausted, Genesis posts a Connection Lost notice with retry and smaller-artifact guidance instead of a raw provider stack trace; earlier thread progress is preserved. Tune retry count and backoff in Advanced Settings → LLM transient error retries. Checksum mismatches, access denials, and DNS or external-access failures keep their existing, more specific error messages.
If a LiteLLM stream closes before producing any text or tool calls, with no generated completion tokens, Genesis treats it as a dropped connection instead of completing the turn with an empty answer. When the configured transient retry budget permits, Genesis requests the stream again at most once; if that retry also closes empty, Genesis surfaces the Connection Lost notice. User-stopped turns, responses with generated tokens, and provider finish reasons such as length or content_filter are not classified as this empty close.
When a blueprint mission exhausts llm.transient_error_retries on a provider rate limit (for example Azure OpenAI, OpenAI, Databricks, or LiteLLM Proxy on the LiteLLM engine), Genesis marks the current phase Stuck in Mission Center, posts the rate-limit error in the mission thread, and stops waiting for the mission timeout watchdog. Review provider quota in Config → AI Providers and resume after limits clear. Tune retry count in Advanced Settings → LLM transient error retries.
You can connect one or more providers.
Chat and embeddings may use different providers.
Configured chat providers also power guided experiences such as the Create Mission blueprint recommendation flow, thread-based blueprint generation (create_blueprint / CREATE_BLUEPRINT_FROM_THREADS), GenesisApps file-write security review, and other auxiliary utility LLM paths (summaries, auto-titling, compression). These paths raise structured provider failures instead of returning provider error text as if it were model output. When the advisor LLM or another auxiliary call cannot complete, Genesis surfaces a clear failure — for example 503 Service Unavailable on the blueprint wizard, a blocked WRITE_FILE when the GenesisApps security judge is unavailable, or a skipped summary for that cycle — rather than treating the outage as a successful empty result. Retry after Test Connection on the affected provider rather than assuming no blueprint fits or that the write was denied on code merits alone.
When a LiteLLM-backed provider reports finish_reason=content_filter, Genesis replaces the streamed chat response with The upstream safety filter blocked this response. and discards any tool calls from that response. The same upstream outcome in an auxiliary simple_completion call (such as auto-titling, compression, or blueprint analysis) raises a structured provider_exception with reason content_filter instead of returning filtered or empty model output.
The available provider list depends on your deployment and enabled integrations.
For streaming chat responses, Genesis scopes Stop to the active chat turn for that user and thread. Genesis honors Stop within a few seconds even when the provider stream stalls silently between chunks, not only while tokens are actively arriving. Stopping one in-flight response does not cancel another user’s or another thread’s concurrent stream when the provider is OpenAI or Azure OpenAI, LiteLLM Proxy, or Snowflake Cortex.
For Databricks oauth chat calls, Genesis resolves the acting user’s grant from that turn’s context; a concurrent turn does not use the user context of whichever thread ran most recently.
If a saved provider key or external-secret reference cannot be resolved when the page loads, Genesis still shows the provider card, but the credential field appears blank until you update the stored value.
For LiteLLM-backed chat, Genesis represents assistant messages with no text content as null rather than an empty string. This keeps tool-call-only turns from becoming empty text parts when LiteLLM converts requests for Google Gemini.
When Snowflake Cortex, AWS Bedrock, LiteLLM Proxy, OpenAI, Azure OpenAI, or Databricks (on the LiteLLM engine) is used for chat, Genesis automatically normalizes unsupported top-level tool-parameter JSON Schema combinators before the request is sent. Snowflake Cortex normalizes anyOf, oneOf, and allOf on tool parameters, and also strips unsupported JSON Schema validation keywords from structured JSON output schemas (response_format with json_schema or json), including maxItems, minItems, uniqueItems, minLength, maxLength, pattern, format, minimum, maximum, exclusiveMinimum, exclusiveMaximum, and multipleOf. Cortex Anthropic/Claude models do not accept OpenAI’s schema-less json_object response format; Genesis omits response_format for those models on utility structured-output calls and relies on JSON-only prompts with parse retry instead. AWS Bedrock and LiteLLM Proxy strip top-level anyOf, oneOf, allOf, and not, then append a short schema note to the tool description so the model still sees the intended requirement in natural language. OpenAI, Azure OpenAI, and Databricks on the LiteLLM path strip top-level anyOf, oneOf, and allOf from tool parameters. On Databricks Claude serving endpoints (model identifier contains claude, case-sensitive), LiteLLM does not forward response_format with json_schema; it rewrites the schema into a forced synthetic tool call and drops response_format, which also displaces the agent’s real tools on chat turns. Genesis withdraws response_format and inlines the JSON Schema into the last user turn with a JSON-only instruction instead. For AWS Bedrock, Twin-side structured outputs (for example the Data Estate overview headline and key points on the Digital Twin wiki pane) also strip JSON Schema validation keywords that Bedrock rejects, including maxItems, minItems, minLength, and maxLength; Twin enforces equivalent limits after parsing the response (for example up to five key points and three caveats on the estate overview).

Provider tool-count limits still apply to tool-enabled agents. OpenAI, Azure OpenAI, Databricks, Snowflake Cortex, and LiteLLM Proxy are capped at 128 active tools per request. Anthropic, AWS Bedrock, and Google Gemini do not publish the same hard cap, so Genesis uses its default runtime ceiling of 256 active tools there unless MAX_TOOLS overrides it. Genesis bounds bot default auto-loads by tool-group count only: by default, new-thread defaults can auto-load up to 12 tool groups, adjustable with CONTEXT_DEFAULTS_MAX_TOOL_GROUPS. The total number of tool functions those groups contain is not capped by default — the provider limits above are the only ceiling.

Getting Started

Getting to Know Genesis

Creating A Mission

User Guide

Blueprint

Genesis Data Agents

Genesis Prover

Genesis Apps

Genesis REST API

Genesis Agent Security Controls

Genesis Data Agent's Toolkit

Setup

Slack and Teams

Data Connections

Deployment Options

Overview

Main page areas

Typical workflow

Configuring a provider through the config API

Infrastructure-managed deployments

Provider-specific notes

Output-token defaults for LiteLLM-managed models

Claude 5 token pricing

GPT-6 token pricing

Temperature parameter allowlist

Reasoning effort parameter gating

Inherited chat tier

Model assignment sources

LiteLLM Proxy model selection

LiteLLM Proxy embedding dimensions

Embedding model setup in the connection wizard

First-save embedding adoption

Recovering stranded document corpora

Document indexes and embedding-model changes

Embedding provider validation and coherence

Digital Twin reload behavior

Customer-facing notes

​Overview

​Main page areas

​Typical workflow

​Configuring a provider through the config API

​Infrastructure-managed deployments

​Provider-specific notes

​Output-token defaults for LiteLLM-managed models

​Claude 5 token pricing

​GPT-6 token pricing

​Temperature parameter allowlist

​Reasoning effort parameter gating

​Inherited chat tier

​Model assignment sources

​LiteLLM Proxy model selection

​LiteLLM Proxy embedding dimensions

​Embedding model setup in the connection wizard

​First-save embedding adoption

​Recovering stranded document corpora

​Document indexes and embedding-model changes

​Embedding provider validation and coherence

​Digital Twin reload behavior

​Customer-facing notes

​Related pages

Overview

Main page areas

Typical workflow

Configuring a provider through the config API

Infrastructure-managed deployments

Provider-specific notes

Output-token defaults for LiteLLM-managed models

Claude 5 token pricing

GPT-6 token pricing

Temperature parameter allowlist

Reasoning effort parameter gating

Inherited chat tier

Model assignment sources

LiteLLM Proxy model selection

LiteLLM Proxy embedding dimensions

Embedding model setup in the connection wizard

First-save embedding adoption

Recovering stranded document corpora

Document indexes and embedding-model changes

Embedding provider validation and coherence

Digital Twin reload behavior

Customer-facing notes

Related pages
