Blueprint Library and Missions

Overview

The Blueprint Library is the reusable workflow catalog inside Genesis. It lets customers browse curated blueprints in tile or list views, search and filter them, sort by name, author, source, or dates, import or export ZIP packages, and start new missions from a known workflow pattern.

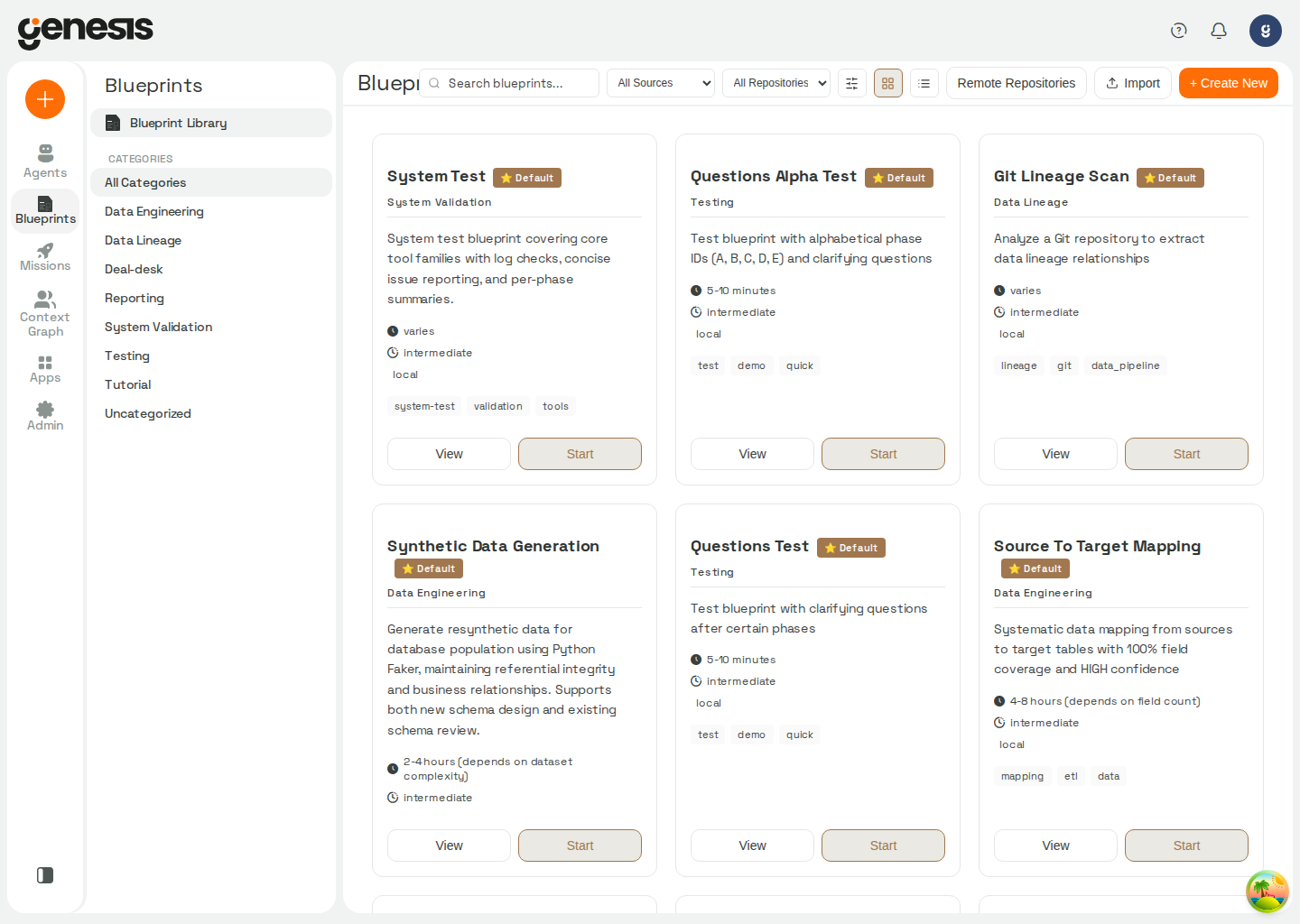

Actual Genesis Blueprint Library showing reusable blueprint cards and filtering controls.

Main library actions

Action	Purpose
Search	Find blueprints by name, description, or tags. Toggle Use regular expression beside the search box for regex matching (session-only — Genesis does not persist regex mode). Invalid patterns show Invalid regular expression; patterns rejected by the safety gate show Pattern too complex — simplify the expression.
View mode	Switch between Tile view (card grid, default) and List view (sortable table with Name, Author, Source, Created, Last modified, and Tags columns). Genesis remembers view mode per signed-in user in persisted user settings (`blueprint_browser_preferences` via `GET`/`PUT` `/api/auth/settings`) so the choice follows you across browsers.
Sort	Use the Sort by dropdown beside the filters. Default is Recently modified (last modified, newest first). Other options: Least recently modified, Newest created, Oldest created, Name A→Z, Name Z→A, Author A→Z, Author Z→A, Source: Genesis first, and Source: Custom first. In list view you can also click column headers to toggle sort direction (date columns start newest-first; text columns start A→Z). Sort is persisted with view mode in `blueprint_browser_preferences`.
Filters	Open the filter menu to narrow by Source (Genesis-shipped vs Custom), author, origin (local vs remote), created or modified date ranges, repository, and tags. The filter badge counts active filters only (not sort). Active filters appear as removable chips above the grid; use Clear all to reset filters while keeping search text, or Clear search and filters from the empty state to reset everything. Selecting multiple tags shows blueprints that have any of those tags (OR semantics), consistent with Mission Center. Selected tag filters are reflected in the page URL as repeated `tag` query parameters (for example `?tag=analytics&tag=etl`) so you can bookmark or share a filtered view; tag matching is case-insensitive.
Preview / View / Start	Open a quick preview from the card, jump to the full blueprint detail page, or launch a mission from the same library flow.
Rename	Rename an existing non-default blueprint from the library actions menu or the detail-page header when you have `manage` access.
Delete	Delete a custom blueprint from its actions menu or detail page when permitted. See the delete API contract for access requirements and deletion behavior.
Import	Bring in a blueprint package from a ZIP file from the header actions menu.
Remote Repositories	Open the header actions menu to connect or review blueprint repositories used as shared catalogs.
Create New	Use the header actions menu to start a new blueprint workflow where your deployment allows it.

See Git Action Tools for branch guidance.

If blueprint discovery reports repositories in unconfigured_repos, those repositories are present on disk but are not registered as managed blueprint sources. Before editing or syncing blueprints in one, register it in the Genesis web app at Blueprints → ⋯ menu → Remote Repositories → Configure. Register each repository separately; registration is performed by the user in the web app, not by a tool call. Without registration, blueprint discovery, canonical per-blueprint branches, and dashboard merge-request surfacing will not work correctly.

Creating a new blueprint from example threads runs asynchronously. During generation, Genesis can report pending, analyzing, generating, optimizing, and saving before the job reaches complete or error. If analysis or manifest synthesis reaches the model’s output-token limit, creation ends in error rather than saving a partial blueprint. If the optional optimization reply reaches that limit, Genesis keeps the complete synthesized manifest and continues without optimization.

Library index resilience

When Genesis encounters a malformed field in a hand-written blueprint manifest while building the library index, it skips that blueprint instead of discarding the entire library. The remaining blueprints stay available; the generated index summary reports how many entries were skipped, and the server log names the affected blueprint and the manifest rendering error to help you correct blueprint_manifest.yaml. On the Blueprint detail page, the Author row shows a readable author label. Genesis uses the RBAC creator’s display name or email for custom blueprints when available, then falls back to the manifest author and finally Unknown. Genesis-shipped blueprints display Genesis Team. The API fields are documented in Key Blueprint detail response fields.

Hidden built-in blueprints

The built-in upgrade_check blueprint is marked hidden: true, so Genesis does not include it in blueprint listings. The post-upgrade check starts it by name through the internal upgrade-check API. Its single fast-tier phase uses the read-only get_project_bots tool to count the mission’s agents, writes that count to reports/upgrade_check.md, and exits. A completed mission verifies that the mission engine, a tool call, and the configured LLM still work. See Internal upgrade-check endpoints for the API that runs the check. Genesis’s own release and QA test blueprints are hidden the same way: system_test, system_test_lite, spcs_system_test, fast_test_tier_matrix, llm_qa_lite, llm_qa_full and cli522_smoke_test. They do not appear on the Blueprints page, in the agent’s blueprint index, or in capability search. They still start by name, through POST /api/blueprints/{blueprint_name}/start, the agent’s start_blueprint_mission tool and Programmatic BlueprintRun; Genesis’s release validation starts them that way. The customer-facing fast_test and genesis_health_check blueprints stay listed. A hidden built-in still owns its name. Creating, copying or renaming a custom blueprint to that name is refused with HTTP 409, and an imported blueprint with that name is installed under a numbered name such as system_test_2.

Local and managed installs

When you import a blueprint ZIP, Genesis supports two destination patterns:

Local install is the default. Genesis installs the blueprint into the local blueprints repo and registers it in the Blueprint Library immediately.
Managed repo install writes the blueprint into the selected managed git-backed blueprint repo, commits it in that repo’s working copy, and registers the managed artifact for shared use.

If you first install a blueprint locally and later decide it belongs in a shared managed repo, Genesis can promote that existing local install without asking you to upload the ZIP again. If the destination repo already contains the same blueprint name, rename the local blueprint or choose Replace when prompted before promoting.

Managed blueprint visibility

Each Genesis instance stores managed-blueprint enablement locally. A blueprint published by a managed source appears in the Blueprint Library only when its artifact is enabled on that instance. If an administrator disables the artifact, Genesis omits it from both the library and the blueprint capability registry; the source’s selectors and the repository contents are unchanged. To diagnose or restore a disabled managed blueprint, open Config → Managed Sources → Blueprints on the owning source and enable the artifact, or call:

PATCH /api/managed-sources/{source_id}/artifacts/blueprint/{blueprint_name}
{"enabled": true}

The change is instance-local and takes effect immediately. A disabled managed blueprint cannot be restored by registering it manually: REGISTER_BLUEPRINT reports that the managed source still controls visibility and returns the enablement hint. Likewise, UNREGISTER_BLUEPRINT cannot hide a managed blueprint; it can remove only a stale manual registration, without changing the managed artifact’s visibility. See the managed-source endpoint details in the Genesis API reference. When an administrator deletes a managed source, Genesis stages its ownership records before cleanup so a failed deletion can be retried without the deleted legacy source returning after a reload. See the managed-source deletion contract for retry behavior and error codes.

Organization health blueprint fixes

When org_health.fix_mode is active, GenesisAuditor can propose repairing missing skill requests or hiding a blueprint whose manifest does not parse. These changes wait in Action Review for a person with the required management permission; remote-backed blueprints are changed in their source repository rather than by the local fix. See the GenesisAuditor tool reference for parameters, refusal conditions, and reversal behavior. The proposal uses the same plain-language decision brief and full-record disclosure described in Chat and Threads.

Import collisions and versioned updates

Genesis previews every blueprint ZIP before importing it. When no blueprint matches, the package is installed as a new local blueprint. When the exported identity matches an editable local blueprint, the import dialog offers:

Import as a separate copy keeps the existing blueprint and installs the package with a suffixed name such as _2. A versioned package restores its bundled history into the new copy.
Add as a new version keeps the existing name, blueprint_id, access rules, production assignment, and destination-owned history. Genesis saves the imported working copy as the next local version. Re-importing identical content is an idempotent no-op. Genesis also commits the import to the backing Git repository (Import blueprint version: {name}) so it appears on the blueprint’s Edit History tab. The import dialog includes a Promote the imported version checkbox; select it only when the new version should immediately become production. Otherwise, review and promote it later from the Versions tab.
Replace swaps the editable working copy without creating a version. Existing ownership, access grants, destination version history, and production assignment remain unchanged, so the replacement appears as working-copy changes relative to the current baseline.

Exports created by current Genesis versions carry identity metadata and can be matched automatically. Older ZIP exports remain supported, but because they do not contain a blueprint_id, Genesis requires explicit confirmation before using an exact name match for Add as a new version. Default, WIP, ambiguous, and managed-repository blueprints cannot receive ZIP-imported versions; managed artifacts should be updated through repository sync.

Blueprint import copies files with symlink confinement: entries whose real path resolves outside the source root are refused (following them would pull external host content into the managed, API-readable blueprint). Refused symlinks are neither copied nor treated as a loss — they are excluded from the import completeness check so a blueprint that legitimately contains an escaping symlink can still import successfully.

Agent tool installs such as _blueprint_tool(action="INSTALL_BLUEPRINT_FROM_UPLOAD") and create-only IMPORT_BLUEPRINT paths refuse same-name collisions. Use the Blueprint Library import UI or the REST import endpoints above when you need Add as a new version or Replace behavior. To move an updated blueprint between Genesis instances:

In the source instance, open the blueprint card’s actions menu and choose Export.
In the destination instance, choose Blueprints → Actions → Import and select the downloaded ZIP. For exact file-selection behavior in downloaded Blueprint packages, see the API export reference, alongside its endpoint-specific manifest details.
Review the detected identity. Choose Add as a new version to update the same logical blueprint while preserving destination history, Replace to swap only its working copy, or Import as a separate copy to keep both.
After a version import, open the blueprint’s Versions tab to review the newly created local version. Promote it only when it is ready for production. Promoting from Versions switches the detail view to Production Version so you can inspect the pinned snapshot immediately.

Remote repository selector matching

When you configure or edit a remote repository source, Genesis scans the selected release_ref and shows a preview grid of discovered artifacts. The checkbox state in that grid follows the same include / exclude selector rules that Genesis applies during sync.

include and exclude are string[] fields, and both default to empty lists.
Selectors without glob metacharacters are exact matches.
Selectors containing *, ?, or [...] use shell-style glob matching.
Genesis compares each selector against artifact_id, artifact_type:artifact_id, path, and artifact_type:path, where artifact_type is blueprint, app, or mission.
exclude overrides include when both match the same artifact.

For example, blueprint:sample_* matches blueprint IDs by prefix, while apps/team/* matches artifacts by repository path.

Sync recovery and reauthorization

Remote repository sync can now return an actionable warning instead of only a generic failure when the saved Git provider grant has expired.

When Genesis detects an expired OAuth grant during repository add, update, or manual sync, the warning toast includes a Reauthorize action for the affected provider.
Completing that reauthorization refreshes the saved connection so you can retry the repository sync and pull the latest remote changes.
When you start a mission from a remote-backed blueprint, Genesis first tries a best-effort refresh of the release copy. If that refresh fails, the mission can still start from the previously synced commit or version, and the warning tells you what release Genesis used and how recently it was last synced.
If the failure is the same expired OAuth grant case, the mission-start warning can include the same Reauthorize action. Missions that already started keep running on the previously synced release.

Card summaries

Blueprint cards and list rows are optimized for fast scanning. Each entry shows a Genesis (gold) or Custom provenance badge so you can distinguish Genesis-shipped blueprints from customer-created ones at a glance. Tile cards also show the resolved Author (for example Genesis Team on shipped blueprints, or the RBAC creator’s display name or email on custom blueprints). When a blueprint manifest includes blueprint.short_description, Genesis uses that text on the library tile and falls back to the full description when short_description is blank. Keep short_description outcome-focused and around 116 characters for the best card layout. The Blueprint editor accepts up to 200 characters, but the library truncates longer visible summaries on the card.

Quick preview from the library

Use the preview action on a blueprint card to open a lightweight modal before leaving the library. The preview can show the full blueprint description, use cases, key features, tags, and the first phases in the workflow. From the same modal, you can open the full detail page or start a mission immediately. Starting a mission from the preview modal or full detail page uses the standard mission-start flow: Genesis creates or reuses the Mission context for that conversation and enters the blueprint’s entry phase automatically. At the top of the Start Mission modal, Genesis shows the selected blueprint name and description. Long descriptions are clamped to four lines by default so the rest of the setup form stays visible. When the description is truncated, Genesis shows Show more and Show less so you can expand or collapse the full text without leaving the modal. The same modal also lets you choose an LLM provider and chat tier (frontier, main, or fast) for the mission thread. Genesis persists these as mission kickoff defaults on the thread and uses them for subsequent chat turns unless a turn supplies its own explicit model override. When you leave either control at its default, Genesis uses the selected agent’s inherited provider and chat tier. On Genesis Desktop, selecting a provider other than Genesis AI opens the Genesis Enterprise modal instead of changing the mission provider. The modal also shows the Working context controls described in Working context selectors. Choose the repository, an optional folder, and the connections for the mission; Genesis validates those selections before creating the Mission thread. If no repository is selected, the blueprint’s resolved mission repository is used when the mission-start flow supplies one. The selected working context is saved on the resulting thread for subsequent chat turns. If workspace High-Risk Tool Controls prevent the mission from starting, the modal identifies the required tools that are blocked. Viewers who can manage workspace policies can open Workspace Policies → Tool Permissions → High-Risk Tool Controls from the notice; other viewers are prompted to ask an administrator to enable the tools. The Assign to agent dropdown lists agents by display name but stores and submits each agent’s bot_id. Genesis matches the selection by bot_id only — display names are labels, not identifiers, so an agent merely named Eve or Adam is never treated as the built-in agents with those ids. For disposable demo blueprints (manifest tag demo:disposable), start the mission through the presenter routes. The client_file_onboarding blueprint is also available from the standard Start Mission modal: the web client generates a browser-tab presenter_session_id (pattern presenter- plus 1–20 lowercase letters or digits) and submits it without a demo_scope. Genesis derives the canonical demo_scope from your authenticated user id and that session. For other presenter starts, submit both demo_scope and presenter_session_id. Genesis persists the scope with a collision-resistant demo_resource_scope on the Mission, appends the scope to the mission name, and returns both identifiers from ENTER_PHASE so every mutable artifact can be namespaced without colliding across concurrent Sales Engineering runs. Genesis rejects starts where a submitted demo_scope does not match the scope bound to that session and user. Genesis reads the tag from blueprint metadata at start time — blueprint name alone does not mark a workflow as disposable. Approved disposable demo blueprints are client_file_onboarding, demo_dashboard_root_cause, and demo_data_migration.

Presenter Controls

The Presenter Controls panel is no longer in the web UI. The user menu offers the same Genesis Staff users a Presentation mode toggle instead (below). The presenter routes described here still prepare, start and clean up each vignette for API clients.

Presentation mode

On an instance with features.presenter_controls_enabled, Genesis Staff users see a Presentation mode toggle (screen icon) beside their name in the user menu. Turning it on shows only the page, without the header and side panels, for screen sharing. Exit presentation or Esc turns it off. The mode lasts for the browser tab, across reloads.

Presenter routes

Presenter Controls was a header panel (sliders icon) for Genesis Staff users when features.presenter_controls_enabled is true. It prepared, reset, and cleaned up Sales Engineering vignettes so every demo starts from a known baseline and only deletes resources owned by the current presenter session. The rest of this section describes that retired panel, for reference: its scenario cards, selectors and buttons are gone. API clients reach the same prepare, start and cleanup operations through the Presenter Controls endpoints. Genesis stores one presenter_session_id for the browser profile in localStorage (format presenter-{id}). The backend combines that session with the authenticated user to derive a deterministic demo_scope and prove exact ownership before any mutation. All tabs in the same browser profile therefore show the same presenter examples; other browser profiles and users remain isolated for active work. The proactive dbt Cloud card additionally shows the newest completed dbt run and Slack investigation from the demo environment so every authorized presenter has an immediate finished example.

Vignette	Prepare / reset	Start mission	Cleanup
Proactive pipeline recovery	Validate and arm the selected shared dbt Cloud scenario	Start real dbt run; deliver its terminal failure to Eve in Slack	No destructive cleanup; prior dbt runs and Slack investigations remain presenter examples
Ticket-driven dashboard anomaly	Reset dashboard fixture from a ready version, then Prepare Jira ticket (requires Jira automation)	Set up demo dashboard / Start fresh demo dashboard from the selected version; choose an implementation agent (`Eve`, `Codex`, or `Claude Code`)	— (reset or remove exact Mission resources through Presenter Control Missions when needed)
Data migration	Start fresh mission (new isolated Mission)	Set up mission	Cleanup stopped or terminal Mission
Client file onboarding	Start fresh mission	Set up mission (GitHub + Databricks inputs; optional coding agent)	Cleanup stopped or terminal Mission
Cost optimization and safe action	Prepare / reset (Snowflake fixture DB)	Open chat with prompt (Eve, pre-filled DIAGNOSE)	Drop marker-proven database
Interactive AUM dashboard	Prepare / reset	Open chat with prompt (Eve, canonical prompt)	Remove app, connection, and SQLite file

Reusable demo versions

Presenter Controls keeps a version catalog for the three reusable scenarios: Proactive pipeline recovery, Client file onboarding, and Ticket-driven dashboard anomaly. Use the Demo version selector inside each scenario card to choose a curated version or one of your tailored versions. To create a tailored version, choose Create tailored version…, enter an industry or prospect context (at least two characters), and optionally provide a version name. Genesis prepares the draft immediately. A successful preparation compiles the scenario’s business story and evidence-backed fixture; the version then becomes Ready and is shared with presenters. Drafts and failed preparations remain private to their creator, while a prepared version is immutable so earlier demo evidence remains available. Starting a scenario creates a fresh isolated presentation run for the selected ready version. The catalog retains every run, its Mission, investigation, and scenario artifacts. After a completed presentation, use Recommend as gold to mark the run as the recommended example; clearing that marker does not delete the run history. Ready Client file onboarding versions also expose the exact immutable synthetic client-file bundle for download before the Mission starts. Mission-backed vignettes opened the blueprint Start Mission modal with the presenter scope locked. Of the disposable demos, only client_file_onboarding starts from the Blueprint Library’s Start Mission modal; start demo_dashboard_root_cause and demo_data_migration through the presenter routes. Ticket-driven dashboard anomaly. Select a ready ticket-dashboard version, choose an implementation agent, and click Reset dashboard fixture. After the fixture is ready, choose Prepare Jira ticket. Genesis creates a real Jira issue in the configured automation project with a dashboard screenshot, live dashboard link, tailored business story, and coding agent. It also starts the matching dbt Cloud failure fixture and posts the failed run details to the ticket. Assign the issue to a configured Genesis worker (for example Genesis) to launch the ticket_dashboard_rca Blueprint as a continuous Mission on that same Jira thread (Jira automation names the mode explicitly); no parallel chat is created. The Mission traces the affected app through Twin, diagnoses the bound dbt Cloud run, applies the smallest repair to the isolated branch, reruns the same configured job, obtains protected Prover PASS, refreshes the app, and posts the exact five-line Genesis RCA final debrief before moving the ticket to Done. If the Mission cannot start or its public link is unavailable, Genesis posts a blocker to Jira and dispatches no repair. When Jira automation is not ready, Presenter Controls surfaces setup guidance and a link to Config → Jira. API clients can call the presenter routes documented in Presenter Controls endpoints. See Advanced Settings — Genesis Staff resolution for how Genesis identifies staff users on every authenticated instance.

A Mission starts in its blueprint’s default_mode unless you choose another mode. Every blueprint that ships with Genesis defaults to goal mode, except the interactive ones (blueprint_tutorial, cli522_smoke_test, dbt_engineering, simple_dbt_loader and source_to_target_mapping), which default to manual, and a new blueprint is created in goal mode. In goal mode the agent pursues the overall mission outcome under goal-mode limits; one run-level goal carries across phases while their exit gates still control transitions. See goal mode transitions. Choose manual mode to review and approve each phase before the next starts. continuous mode is a legacy value: Genesis still accepts it from the API, Programmatic BlueprintRun hosts and existing blueprints and Missions, but the Start Mission modal and the blueprint editor offer it only for a blueprint whose saved default is already continuous. For a blueprint saved without a default_mode, the Start Mission modal preselects manual, and an API or tool start must name a mode. In the Start Mission modal, goal mode displays an optional Goal statement field. If left blank, Genesis uses

Complete the <blueprint> blueprint     without stopping, except as directed by the blueprint phases or if you need     help from the operator

; enter a custom statement to make the mission goal reflect the requested outcome.

Before Genesis creates a mission project or thread, it runs a tool policy preflight on the selected blueprint source. If the blueprint requires high-risk tools that are globally blocked under Workspace Policies → Tool Permissions → High-Risk Tool Controls, mission start fails with a clear error and no mission is created. Genesis infers required high-risk tools from each phase’s context_defaults (for example code_executor_tools implies execute_python_code, and dbt_action implies dbt_action) and from phase text that references a high-risk tool by name (dbt_action, execute_python_code, or _run_sqlite_cli_commands). An administrator must allow the high-risk tool family before operators or agents can start that blueprint. The same preflight applies to chat start_blueprint_mission, POST /api/blueprints/{blueprint_name}/start, and programmatic POST /api/blueprints/{blueprint_name}/runs. Genesis also carries a stable blueprint_id behind the scenes for Blueprint actions. When the same blueprint name exists in more than one source, Genesis keeps using that identity as you move from the library into detail, versioning, access, edit/WIP, rename, delete, or mission-start flows so you stay on the exact selected blueprint. When a mission starts, Genesis records its resolved blueprint_id when one is available. Mission phase details and template-file reads use that identity. For older missions without a recorded id, Genesis resolves a duplicate name from the mission record and the blueprint selected by name when the mission ran; if it cannot identify a matching candidate, the read remains ambiguous rather than choosing another blueprint.

Rename a blueprint

Genesis lets callers with Blueprint manage access rename existing non-default blueprints from the library actions menu or the Blueprint detail header.

In the web UI, Genesis trims the entered value, lowercases it, and converts spaces to underscores before submit. The final name must use only lowercase letters, numbers, underscores, or hyphens, and it must be 100 characters or fewer.
Local blueprints rename immediately. Genesis updates the blueprint manifest and re-points completed missions and related Blueprint metadata to the new name.
Remote-backed blueprints open a rename pull request against the managed repository. The rename becomes effective after that pull request is merged and the next source sync runs.
Genesis blocks renames when the blueprint still has in-flight missions. Default blueprints and active WIP sessions cannot be renamed.

Source-aware detail views

When a Blueprint detail page has more than one readable source, Genesis shows a source chip in the title area and, for callers who can edit or manage that Blueprint, a source switcher in the header.

Working Copy is the editable draft. On the detail page, Genesis keeps this state lightweight: the title chip stays visible, and the explanatory text moves into that chip as a tooltip instead of showing the larger source banner.
Production Version is the read-only pinned production snapshot for a versioned Blueprint.
Default Release is the read-only synced checkout from the backing repository, available on remote blueprints when Genesis needs to let you compare the release source against an active draft.

On desktop, hover or focus the Working Copy chip to confirm that you are in the editable draft. On mobile, tap the chip to open the same explanation. When you are viewing Production Version or Default Release, Genesis shows the read-only source banner, and the primary edit action changes to Edit Working Copy so you can jump back into the editable draft before making changes. The same source selection applies when you start a mission. If a blueprint exposes more than one readable source, Genesis asks you to choose which source to run before the Mission begins. If you are already editing a Blueprint, Preview in Blueprint View opens the full detail page on that same Working Copy so you can inspect phases, files, missions, and metadata without leaving the current draft context.

Working-copy edits use a preview-before-apply flow. When an edit targets a specific phase field, action, or exit criterion, Genesis preserves the rest of that phase in the preview instead of rewriting unrelated fields. For broader rewrites, review the preview carefully and make each intended field explicit before applying it.

When applying a manifest edit, Genesis retains the leading YAML comment header from the existing manifest. Comments elsewhere in the YAML are not retained by the parsed-manifest editor, so include important guidance in manifest fields rather than relying on inline or body comments. For an approved manifest edit inside a Git repository, Genesis commits the manifest as part of applying the edit. This includes a manifest that is present on disk but has never been tracked: Genesis stages that file before committing it. A manifest outside a repository or covered by the repository’s ignore rules is written without a commit. If the commit fails, Genesis restores the previous manifest bytes and reports the edit as not applied. See the Git policy.

The source switcher appears only when Genesis has more than one source to show and the current caller can edit or manage that Blueprint.

Typical workflow

Open the Blueprint Library.
Search or use the filter menu to find a relevant blueprint.
Use the quick preview for a summary, or open the full blueprint details.
Start a mission from the blueprint, or import a new blueprint package.

Blueprint and mission execution consume concurrent working agent (CWA) slots. When all slots are busy, Genesis may queue the run automatically and start it when a slot opens, with queue position shown when available, or ask you to try again later. If you need more parallel mission capacity, contact Genesis about increasing your Genesis License.

If Genesis detects suspected replay growth on a blueprint mission thread, it pauses automated execution, switches the thread back to manual mode, and adds a thread-visible guard notice. Review that thread instead of restarting the mission from Phase 0 on the same thread; quarantined threads stay blocked until a human confirms the thread state is healthy. When continuous execution is paused this way, the current phase stays active so you can continue from that phase after review.

Start from a goal instead of a known blueprint

If you know the outcome you want but not the right blueprint name, open Missions and Tasks and select the full-page Create Mission flow. Genesis can ask up to two clarifying questions, then return up to three ranked blueprint recommendations with fit rationale, match strength, and blueprint details. When you already have visible saved connections, Genesis can use them as soft platform hints while still prioritizing the goal you described. Select Start Mission with this Blueprint on a recommendation card to open the standard mission setup flow with the goal, any answered questions, and the recommendation rationale prefilled in kickoff notes. Genesis uses only one follow-up round in this guided flow. After you answer the clarifying questions, it returns recommendations instead of asking a second round of follow-up questions. When the blueprint advisor’s auxiliary LLM call fails — for example because the active provider is misconfigured, the provider returns an error or empty response, or the model output cannot be parsed — the wizard shows a clear AI failure notice with a recommended next step and, when available, a Support ID. It does not display raw provider error text or treat the failure as “no blueprint fits.” For the HTTP status and response fields, see the Blueprint wizard error response contract. Disposable demo blueprints (manifest tag demo:disposable) are excluded from this recommendation list. Start those vignettes through the presenter routes instead.

Access and visibility

When authentication is enabled, the Blueprint Library shows only blueprints the current user can view. Genesis resolves blueprint ownership from blueprint_manifest.yaml using the top-level created_by field, with fallback to legacy blueprint.created_by and, when needed, origin.created_by_user_id. The owner automatically satisfies Blueprint RBAC checks, and newly created or copied blueprints remain owner-only until you add role grants. When you grant access from a blueprint’s access panel, choose a configured RBAC role from the searchable Select a configured role dropdown. The list is populated from available_roles on GET /api/blueprints/{blueprint_name}/access, so callers with Blueprint manage access (or ownership) can share a blueprint without the manage_users system permission. Genesis only accepts built-in and custom roles already defined in Config → Users; the Grant button stays disabled until you pick a matching role from the list. Custom and imported blueprints can also carry an origin block for provenance. Genesis preserves who created the blueprint, how it was created or imported, and any recorded source-thread or import-event history so library, detail, export, and re-import flows keep that audit trail intact. For blueprints that are visible in the library, the actions Genesis shows still depend on the caller’s Blueprint access level, including manage, edit, and execute. With authentication enabled, starting a mission from the Blueprint Library or the mission-start API also requires execute access. A user who can view a blueprint may still be denied permission to start it; ask a Blueprint manager or administrator to grant the role execute. See Blueprint RBAC actions for how Genesis resolves these grants. The guided recommendation flow used by Create Mission only returns blueprints the caller can execute.

Blueprint inputs and outputs

Blueprints can declare an input/output contract in blueprint_manifest.yaml under blueprint.inputs and blueprint.outputs.

inputs.required — each entry has name, type, and description. These names must be supplied (by exact name) when starting the blueprint via POST /api/blueprints/{blueprint_name}/start, the Start Mission UI, or BLUEPRINT_HANDOFF.
inputs.optional — same shape; omitted values fall back to manifest defaults when defined.
outputs — artifacts downstream blueprints or handoffs can consume (for example migration_repo_id with type: repo_id). Entries with type: document and a path also declare report filenames for the report consistency guard at phase exit.

When an agent inspects a blueprint with GET_BLUEPRINT_INDEX (via _blueprint_tool), the response includes inputs (required and optional arrays) and outputs, plus a summary line listing required input names when present. When BLUEPRINT_HANDOFF fails because the target blueprint still needs required inputs, Genesis returns a structured awaiting_inputs response with missing_required_inputs and agent_action_required (retry with the inputs parameter filled from the parent blueprint’s outputs) instead of a generic “requires inputs” error. When the Start Mission modal receives pre-filled structured inputs (for example from Launchpad), Genesis shows a read-only Structured inputs panel listing each input name and value before you submit. Object values are shown as JSON; scalar values are shown as text. The same values are sent as the inputs object on POST /api/blueprints/{blueprint_name}/start and stored on the mission thread as blueprint_inputs for phase entry and downstream handoffs.

Blueprint journeys

Genesis can attach a journey recipe when a mission starts from a guided flow such as Launchpad. Journey recipes are declarative YAML files (for example database-migration) that declare:

entry_blueprint — the first blueprint in the chain (must match the first stages[] entry).
stages[] — ordered steps with id, blueprint_name, label, description, optional optional: true, and optional requires_target: true for stages that need a live target connection.
edges[] — conditional transitions between stage ids (for example target_connection, user_approval).
input_bindings — maps Launchpad answers into structured blueprint inputs (for example source_connections from a connection-picker step).

Mission start accepts an optional journey_context object:

Field	Type	Description
`definition_id`	string	Journey id (lowercase letters, numbers, hyphens).
`variant`	string	Platform variant within the journey (for example `snowflake` or `databricks`).
`plan_only`	boolean	`true` when the user chose plan-only mode (no target connection).

Genesis validates that entry_blueprint on the journey matches the blueprint being started, stores blueprint_journey_context on the mission thread, and inherits that context across blueprint_chain handoffs to child threads. Resolve a journey recipe with GET /api/blueprints/journey-definitions/{journey_id}?variant={variant}. See Genesis API — Blueprint journeys.

Mission Center blueprint chain

When a mission is part of a multi-blueprint journey or has spawned child blueprint handoff threads, Mission Center shows a Blueprint chain strip above the mission tabs. The strip lists each stage in journey order (or spawned order when no journey recipe is present). Mission Center also sets the browser tab title for the open mission. It uses the format Mission: mission name | Thread: thread name when both names are available, Mission: mission name when only the mission name is available, and Genesis when no mission or thread title is available. Standalone mission tabs use the same title format.

Solid pills — a spawned thread exists; select the pill to open that thread on the Thread tab (chain_thread URL parameter).
Dashed pills — a planned stage that has not started yet.
Expected — upcoming stage from the journey recipe.
Skipped — stage omitted because plan-only mode or a missing target connection made a requires_target stage unnecessary.
Optional — journey stage marked optional: true (for example incremental CDC testing).

Parallel branches show a branch icon between pills instead of a chevron. Hover or focus a stage pill to see its label and description in a tooltip. Remediation rounds. When a validator re-fires the runner in remediation mode, each corrective mission appears as a remediation node in the chain. A single remediation round shows a green Remediation badge on the stage pill. Multiple rounds from the same validator parent collapse into one expandable group labeled with the round count (for example ×2); expand the group to select an individual round. Round numbers come from remediation_round on each chain node (1-based, chronological under the same parent). Run-state indicators. A pulsing green dot on a stage pill marks the mission that is actively running (run_state="running" from the blueprint-chain API). For the current mission, an amber pulsing dot marks current_status equal to IN_PROGRESS_NEEDING_INPUT or STUCK, and a gray dot marks PAUSED; the gray paused indicator does not pulse. The dot follows live execution — for example, it moves back to the runner pill when a validator hands work off in a remediation round, even if you are still viewing the validator thread. Collapsed remediation groups show the highest-priority indicator from their rounds: awaiting input, paused, then running. To retrieve visible missions waiting on a person and their unanswered Blueprint task questions when available, use GET /api/projects/awaiting-input; see the Genesis API reference for its response fields. Retired missions. A mission with status RETIRED is permanently terminal: Genesis blocks new Blueprint phase entry and phase progression for it. The blocked operation reports the mission’s retirement reason when one is recorded. Start a new mission if the work needs to continue; do not retry Blueprint operations on the retired mission. Handoff toast. When the chain spawns a new mission thread while you are viewing a different stage, Genesis shows a clickable toast (forward handoff or remediation re-fire). The toast stays visible until you click it, dismiss it, or leave the mission screen — it does not auto-dismiss. Click it to open the new stage on the Thread tab (Genesis resolves the latest chain state at click time so navigation reaches the child’s mission workspace when it is ready). Toasts fire only for threads that appear after you open the mission — existing chain nodes never trigger one on load. Coding agent badge. When the mission thread carries a presenter-safe coding_agent blueprint input (ginie, cocoa, or claude_code), the chain strip shows a compact badge (for example Claude Code) beside the chain label. Genesis exposes only these three values — never arbitrary blueprint inputs. The strip can appear for a single-stage mission when a coding agent is selected even if the chain has only one spawned node. When you select a spawned stage:

If the chain node belongs to a different mission project, Genesis navigates to that mission’s Overview tab.
If the node shares the current mission project, Genesis opens the Thread tab with chain_thread set to that stage’s thread id (preserving other URL parameters except debrief_id).

Fetch the chain programmatically with GET /api/projects/{project_id}/blueprint-chain. See Genesis API — Project blueprint chain.

Journey debrief

When a mission chain has two or more spawned nodes or two or more planned journey stages, Mission Center adds a Debrief tab on the root mission project. That tab aggregates evidence from each recorded stage — child mission debriefs, phase checklist history, query activity, validation outcomes, and connection context — into one Journey debrief (source_kind="journey"). Genesis generates the aggregate on demand (or returns a cached version when the underlying evidence fingerprint is unchanged). Synthesis can produce a narrative headline and summary; when the Journey is still in progress or synthesis fails, Genesis falls back to deterministic copy while keeping per-stage evidence intact. For an in-progress stage, the aggregate uses the stage’s live blueprint_phase (phase_number or phase_id) and phase_name, marks that phase in_progress, and includes it even when it is not yet present in the recorded phase timeline. From the Journey debrief, open a stage’s mission workspace via the chain stepper, or drill into an individual stage’s mission debrief without leaving the root mission (?tab=debrief&debrief_id=<child_debrief_id>). See Missions and Tasks — Journey debrief tab and Genesis API — Debrief endpoints.

Database migration blueprints

Genesis ships paired Snowflake and Databricks migration suites. Each platform has four blueprints that chain together. In demo mode, these blueprints (and other gold-path vignettes such as client_file_onboarding and demo_dashboard_root_cause) carry the manifest tag demo:gold so Mission Center can default to today’s gold demos — see Missions and Tasks — Mission Center.

Blueprint	Role
`{platform}_migration_planning`	Discover sources, convert SQL, generate flows and execution artifacts
`{platform}_migration_runner`	Execute the plan against live connections
`{platform}_migration_validator`	Post-migration validation
`{platform}_migration_incremental_test`	Incremental / CDC testing

Replace {platform} with snowflake or databricks.

Approved chat migration blueprint

Chat migration plans that the blueprint can execute run as migrate_and_prove, a lightweight Mission in the chat that approved the plan. It starts only from the plan card’s Approve and start action or a Launchpad hand-off—not from a typed migration request—and is hidden from blueprint listings. The start reads the plan bound to that approval and begins in goal mode; the approved plan id is the Mission’s server_scope_id input.

Phase	Work	Exit record
0 — Plan	Read the approved plan, capture answered choices, ask for remaining choices, and write the plan record.	`PLAN.md`
1 — Build	Run the approved plan’s dbt or declarative-pipeline recipe and record its build receipt.	`BUILD.md`
2 — Prove	Run the data and (for pipeline plans) behavior proofs; require a verified spec grade and the pinned behavior check.	`PROOF.md`; pipeline plans also keep `BEHAVIOR_RUN.json`
3 — Readout	Summarize what moved and how it was proven.	`READOUT.md`, `READOUT.json`

The Prove and Readout phases do not load flow_tools. The prove-data-work skill supplies prover_tools and migration_prover_tools for the behavior-proof path, keeping unrelated Flow tools out of the thread’s provider tool set. The blueprint runs pipeline plans rebuilt as dbt on Snowflake or as a declarative pipeline on Databricks, and data-only plans on either platform. Its Prove phase seals a source-contract spec and therefore requires ratify_source_contract. If the plan is usable in chat but cannot run under these blueprint conditions, it continues in chat without this Mission; it does not run beside a migration Mission already active in the thread. Pipeline-service sources do not start this Mission directly; see Migrate data and pipelines for their service-specific handoff. For approval and chat-card behavior, see Migration intake tools.

Bronze-to-silver onboarding

The built-in bronze_to_silver_onboarding blueprint treats the source schema as the Prover’s source estate. If no answered document says whether other source-schema tables may be left unassessed, ask in DECISION_REQUEST.md; only add them to TARGET_MODEL.json’s unassessed list when the owner agrees, and quote that ruling as basis. See Declared target mappings for the distinction from a split with "images": [] and the comparison rules.

Planning inputs and online vs plan-only mode

The planning blueprints declare these inputs in the manifest:

Input	Required	Purpose
`source_connections`	Yes	Comma-separated Genesis connection names for source databases
`target_connection`	No	Live Snowflake or Databricks target connection

When target_connection is provided and valid, the planning mission runs in online mode — artifacts can be validated or executed against the target during planning. When target_connection is omitted, planning runs in offline (plan-only / artifact-generation) mode. All SQL, flow definitions, and execution manifests are written to the mission repository but not executed against the target. For the Databricks planning blueprint’s bulk Git deployment, each selected source directory is placed under the requested workspace target by its basename while preserving descendants; repository ancestors above the selected directory are not reproduced. A single source file is placed by basename. See sync_from_git path mapping for the exact path rules and deployment response fields. The Launchpad Migrate data and pipelines journey uses the database-migration journey recipe (snowflake or databricks variant). It collects source_connections and target_connection up front, then asks whether you are migrating Pipeline and its data or Data only. The data-only choice follows the existing migration journey. The pipeline choice lets you select a repository, immutable revision, entrypoint, and supporting files; Genesis inspects those selected files without running them or changing the checkout, then carries the pinned source into the migration mission. The current planning intake also builds a reviewable migration plan from the source catalog and Context Graph. It identifies tables and views written or read by the selected pipelines, finds candidate row keys, chooses a destination namespace and rebuild runtime, and lists the Prover checks the plan will use. The user approves the displayed plan before Eve acts on it; the approved scope is bound server-side. With a Snowflake target, the default rebuild runtime is dbt. With Databricks, the default is declarative_pipeline, and databricks_job is also available. Planning without a destination can record the intended platform and runtime, but does not authorize execution. See Migration intake tools for the chat route and migration plan API for the request contract. For a selected pipeline, review the objects it reads and produces, choose Rebuild the outputs from the current inputs (full_refresh) or Process new and changed data (incremental), and confirm the run requirements. The converted pipeline is deployed at the destination and Prover compares its outputs with the source execution. The mission workspace exposes the pinned files, task dependencies, target execution, Prover result, and the requested incremental and replay-without-new-input checks. A pipeline proof is not shown as complete until the published code and its execution evidence are verified. The journey maps its connection and pipeline choices into structured blueprint inputs. When you choose I don’t have one yet — plan only on the target step, it passes journey_context.plan_only: true; the selected source is still captured as immutable identity for the plan. Genesis also records connection context in kickoff notes, but the structured inputs and journey context drive plan-only vs online behavior and the Mission Center chain stepper.

Launchpad does not expose private demo-only journey cards. Use Migrate data and pipelines for standard customer migration demos. Use its Data only choice when you need the existing table migration flow, or Pipeline and its data when the source code that produces the data must also be migrated. Legacy sales-demo blueprints such as demo_data_migration and client_file_onboarding remain in the Blueprint Library for direct starts through the standard Start Mission modal when an operator still needs them; they are not linked from Launchpad.

SQL syntax validation during planning

During analysis and SQL conversion phases, migration planning blueprints syntax-check converted SQL with _validate_sql from data_connector_tools. Pass dialect as the sqlglot dialect name for the target system the SQL will run on — for example dialect='snowflake' for Snowflake migration targets and dialect='databricks' for Databricks targets. The tool uses sqlglot parsing only; it does not execute SQL against a live connection. Returns valid (whether the SQL parsed cleanly), dialect (normalized dialect used), errors (parse failures, if any), and normalized_sql (first 1000 characters of transpiled SQL). Pair with _diff_sql for side-by-side source vs converted diffs during manual review. _validate_databricks_sql remains as a deprecated alias that forwards to _validate_sql(dialect='databricks'); new work should call _validate_sql directly with the correct target dialect.

Palantir Foundry to Databricks

Genesis ships the foundry_to_databricks blueprint in the Blueprint Library for an end-to-end Foundry migration. Start a mission with the required foundry_connection (the Connections-service name, not a token), foundry_space (a compass folder RID or display name), target_connection, and target_catalog. Optional inputs select pipeline_mechanism (dlt by default; pyspark or designer are also supported) and the destination schemas: raw_schema (foundry_raw), ontology_schema (foundry_ontology), and semantic_schema (foundry_semantic). The estimated duration is hours, depending mainly on landing volume and the proof loop. The mission runs in goal mode and advances through seven phases:

Phase	Work and report in the mission repository
Characterize the estate	Inventory datasets and Pipeline Builder pipelines; count the estate twice. `01_estate/ESTATE_INVENTORY.md`
Land the data	Land datasets in Unity Catalog and prove each landing as leg A while it is still a direct copy. By default, reconcile row counts, character counts for every text column, `null_count` (per-column NULL counts), `empty_string_vs_null`, and `whole_row_multiset` on every table; these preservation checks do not need to be requested. Cite a migration default by its property ID in `requirement_source.property`, with a `citation` beginning `migration default: target reproduces source`, rather than paraphrasing the check. The seat’s catalogue also covers other properties and can grow. Record the grade run ID and verdict in `02_landing/PROOF_LANDING.md`, alongside `02_landing/LANDING_RECONCILIATION.md`.
Rebuild pipelines	Build and run each pipeline in the selected mechanism. A pipeline that needs unsupported `parseGeoJson` falls back to PySpark individually, with the fallback reported. Prove each transform as leg B by recomputing its expected output from landed data; record the grade run ID and verdict in `03_pipelines/PROOF_TRANSFORMS.md`, alongside `03_pipelines/PIPELINE_REBUILD.md`.
Stand up the ontology	Create the ontology schema with column comments, Palantir provenance, declared keys, carried nullability, and orphan-count verification. `04_ontology/ONTOLOGY_REPORT.md`
Build the semantic layer	Create metric views over conformed base views and reconcile each measure with a control query. `05_semantic/SEMANTIC_RECONCILIATION.md`
Prove the migration	Prove leg C end to end, comparing the source platform’s objects with the delivered ontology, then compose it with legs A and B. `06_proof/PROVER_VERIFIED.md` records the verdict for every grade run and carries the earlier leg run IDs; if the grade is not verified, it names each cause and the mission waits for input.
Ask the ontology questions through Genie	Bind the governed semantic layer to a Databricks Genie space with one `bind_semantic_layer_to_genie` call, then put one business question per metric view to it — at least five times each, in a governed-only space and in one that also holds the raw tables. `07_genie/GENIE_ANSWERS.md` records every ask with its answer, the SQL Genie generated for it, the control value from phase 4 beside each governed answer, the distinct-answer count per question, and any refusals.

Phase 0 also records which SQL route served its reads, using served_by from foundry_query. If legacy_data_proxy serves a read instead of public_sql_queries, every remaining read in the run uses the legacy route. Record the route as an observation, not a defect: proof work is unaffected, and the routes have not been compared for latency on this estate, so do not attribute run duration to the route. A long proof reflects the digests it computes over the rows it reads. Record Foundry’s refusal verbatim. A 403 ReadQueryInputsPermissionDenied does not mean the token lacks data access or needs a wider scope. The public route is gated by the resource-scoped foundry-sql-server:read role granted on the project; that role is independent of the token and administrator status. Do not grant dataset permissions for it. Each proof runs in the phase that produces its result: leg A checks the landed copies, and leg B checks the rebuilt transformations against their stated rules. The phase records the grade run ID and actual verdict even when it is not verified. A landing difference that remains unexplained, or a transform difference that cannot be fixed or licensed, stops that phase; an unstated business rule raised during leg B also waits for input. Leg C then checks the Foundry objects against the delivered ontology end to end. The proof phase gates the build on a Prover grade with the verified verdict. Its record’s heading states the verdict and includes the spec hash, grade run ID, verdict sentence word for word, and run IDs for legs A and B. The mission does not treat a successful pipeline run or row-count match alone as proof. A grade limited to selected checks is always partial and cannot satisfy this gate; grade every check to prove the build. See selected-check grades for the Prover result semantics. Use the characterization inventories’ object names in each proof spec’s scope; a display title from a ticket does not resolve. An identifier is also valid when the engine resolves it to exactly one characterized object. If neither estate’s latest snapshot holds a scoped object under the supplied name, sealing refuses with scope_entry_unresolved; a prove-time map cannot repair the sealed scope. Declare comparison mappings on the prove. When the spec’s scope names objects under source schemas absent from the target, and the prove-time pre-check applies, submission is refused with cause schema_map_undeclared before comparison: there is no run ID or verdict, and the refusal ends “Nothing was submitted.” An explicit schema_map={} does not avoid that refusal. This differs from an indeterminate reading with the same cause: when the pre-check does not apply, comparison runs but cannot address the objects. This can occur with no spec attached, a spec with target_model, incomplete scan enumeration, a pair with a ratified addressing rule, or an unaddressed source schema not named in the scope. Treat the refusal as a request to fix the mapping, not as a grade. Use object_map for individual renamed objects (keys and values are schema.object), and schema_map for a source schema whose objects retain their names after relocation. They can be combined: an object_map entry takes precedence for that object, while other objects fall through to schema_map. A schema mapping covers every object in that schema, including objects outside the scope; prefer the smallest set of entries that addresses each source schema named in the scope. A key that matches nothing is inert, while overlapping or contradictory entries can still produce an addressing finding. A map does not repair a scope sealed with the wrong spelling. When authoring a spec, measure questions about the existing data (such as types, nullability, keys, row identity, and row counts) rather than asking an owner to look them up. Apply recurring rulings with the same answer on every run as defaults and record them in the spec. Ask an owner only about an intended change from the source or a rule the data cannot settle, with a required recommended answer and its reason. Write owner-facing questions in business terms, not Prover terminology, and refer to the owner’s actual columns and tables. Unaccounted-for data differences still stop the phase; only knowable rulings cease to be blockers. Migration defaults are adopted silently; questions about them, if raised, appear on the run summary as migration_default_questions, not as owner questions. Legs A and C are cross-estate comparisons: their source_sql runs against Foundry’s own estate on the Foundry connection, while target_sql runs against Databricks. Do not use a landed copy as the source side; that would put the migration step on both sides and could hide a landing defect. Leg B is intentionally different: it compares the landing with its rebuilt transformation, both on Databricks. If Foundry’s SQL route is unavailable during leg A, report the proof as unmeasured. The grade-time rewrite cannot substitute the landing being graded with another copy of that same landing. For derived targets, submit target_model with schema_version: "2" and a derived list. Each derived object uses object, sources (the original Foundry objects), layer_sources (the immediately preceding Databricks layer), columns, grain (a list of key columns), and a prose derivation. Re-submit the model with every submission: it is carried only within one authoring thread, and a resubmission opens a new thread. Prefer resubmission_of with the previous spec-author seat run’s run_id and omit target_model to carry its registered mapping unchanged. Confirm the response includes data.target_model_carried_from; if absent on this leg, submit the full model instead. Re-submit the full model unchanged as the fallback when the earlier run ID is unavailable or the build does not support carrying. The final phase is what the grade is for: a verified ontology that nobody can question has not finished the migration. It does not accept a created Genie space as its result — the evidence it records is the number of asks, the number of distinct answers each question produced across its repeats, and the number of governed answers that disagreed with their control query, none of which a bind call produces. The mission advances only when each governed question produces one distinct answer across its repeats, every answer agrees with its control query, and Genie uses the governed measure rather than SQL of its own; it then returns the bound space ID as genie_space_id. Otherwise, the mission names the measure and question and waits for input rather than re-asking until an answer agrees. For a tailored migration outside this standard seven-phase workflow, an agent can also use the palantir_foundry_tools and palantir_foundry_migration_tools groups. Give the agent a ticket that states the outcomes (datasets landed at Foundry’s counts, each Pipeline Builder pipeline translated to a PySpark script, published as a workspace notebook and run on Databricks, ontology object types materialized, the migration proved) and it sequences the work itself: it plans pipeline dependencies from Foundry’s job specs, extracts long datasets through a background handle it polls until terminal — resuming that handle rather than starting a second extraction, and reading foundry_list_landings to clear any staging table an abandoned attempt left — and hands each landed dataset to the Prover. Unsupported pipeline nodes, ontology links and action types are recorded rather than silently dropped; a copied derived input is labelled as copied from Foundry, not recomputed. Each translated pipeline is published into the customer’s Databricks workspace as a notebook by foundry_publish_notebook, which splits the compiled script at its function boundaries and leads with a provenance header (the Foundry pipeline name, RID, sandbox and version, when it was translated and the compiler’s source hash) and an output-contract table naming every target table with the columns and Spark types the Foundry target declares. That notebook is the durable artifact the customer’s own engineers open and review; a Databricks Connect run leaves nothing behind. Publishing refuses rather than replacing: it writes onto a path the workspace confirms is free, or over the notebook recording the same Foundry pipeline, so re-translating a pipeline updates its own notebook and nothing else. Execution stays with foundry_run_pipeline_script, which runs the same script through the Databricks Python session — running the published notebook itself would go through the Jobs API and create a job run, which this migration path deliberately does not do. The verification step is foundry_verify_migration, which registers and characterizes the Foundry dataset and its Databricks target before submitting a Prover proof. Record the returned proof_run_id and diff_hash in the migration report; a successful pipeline run or a row-count check is not a proof. See Palantir Foundry migration tools for tool parameters and Genesis Prover for the verdict and review flow.

Semantic fidelity during SQL conversion

Migration scoring is a pattern scan plus a type-fidelity check, not a semantic- correctness verdict. A SIMPLE rating means no known vendor-specific patterns were detected; it does not certify the transpiled SQL or eliminate manual review. Check numeric types against the source schema before accepting the output, especially when a source type carries implicit precision and scale:

For Databricks targets, a bare DECIMAL, DEC, or NUMERIC defaults to DECIMAL(10,0) and can silently truncate scale. BigQuery NUMERIC must be preserved as DECIMAL(38,9).
For Snowflake targets, a bare DECIMAL, DEC, NUMERIC, or NUMBER defaults to NUMBER(38,0) and can silently drop scale. BigQuery NUMERIC must be preserved as NUMBER(38,9).
For SQLite sources converted to Databricks, REAL, FLOAT, and DOUBLE affinity columns are mapped to Databricks DOUBLE because SQLite stores this family as 64-bit IEEE doubles, while Databricks FLOAT is 32-bit. The DDL conversion reports the widened column count in warnings; override it only when the source values are known to be 32-bit.

The scorer returns dropped parameterisation in type_fidelity_warnings and does not rate those objects SIMPLE. If sqlglot_transpilation.success is false, the object requires manual conversion. The Databricks DDL generator also fails when its draft contains an unparameterised decimal; repair the returned databricks_ddl_draft with explicit precision and scale from the source schema before retrying. It also refuses a draft that no longer declares the source table or columns; see Connections — Query comparison safeguards for the returned loss fields and other conversion refusals. For the source-type mapping table and the BIGNUMERIC decision, see the platform-specific migration blueprint’s type mapping reference.

Runner handoff and resume recipes

At the end of planning, the agent offers handoff to {platform}_migration_runner. The runner requires a live target connection and cannot run in artifact-generation mode. Online planning (target was configured): the planning phase declares a handoff_decision exit criterion — present the runner handoff, wait for a separate user reply, then exit with boolean completion_proof fields. See Handoff decision exit criteria for manifest fields and same-phase retry behavior. On approval, hand off with these three required inputs:

migration_repo_id
source_connections
target_connection

Optional: flow_definitions_path — defaults to 03_staging/flows/FLOW_MANIFEST.json; pass only when the generated flow manifest is elsewhere. Remediation mode (runner re-fire). On both Snowflake and Databricks, in Phase 6 (Fix Loop), after the validator authors 10_validation/RUNNER_ACTIONS.md and 10_validation/FIX_DELEGATION.md, it presents the delegation package and — on user approval — triggers a declarative blueprint_handoff to {platform}_migration_runner (mode: async, on_completion="notify" so Phase 6 stays open and the validator resumes automatically when the corrective mission finishes). Genesis maps these inputs automatically:

Input	Source
`remediation_repo_id`	Validator mission repo (`validator_repo_id`)
`remediation_actions_path`	`10_validation/RUNNER_ACTIONS.md`
`remediation_delegation_path`	`10_validation/FIX_DELEGATION.md`
`migration_repo_id`	Planning mission repo (pass-through)
`runner_repo_id`	Original runner mission repo
`source_connections`	Pass-through from validator inputs
`target_connection`	Pass-through from validator inputs

When remediation_repo_id is present, the runner enters remediation mode: Phase 0 routes directly to the remediation phase — only the delegated fixes are applied and only the affected objects are rebuilt; the full pipeline is not rerun. In remediation mode, runner_repo_id (the original runner mission repo, whose 09_run/ logs hold execution context) is also required. When the mission is part of a database-migration journey, this handoff appears as a spawned stage in the Mission Center blueprint chain, inheriting blueprint_journey_context from the parent thread. When starting remediation outside the validator handoff, remediation_actions_path defaults to 10_validation/RUNNER_ACTIONS.md and remediation_delegation_path defaults to 10_validation/FIX_DELEGATION.md. Plan-only planning (no target at kickoff): do not attempt BLUEPRINT_HANDOFF to the runner yet. If kickoff notes already declared plan-only mode, treat that as the user’s standing decision. Otherwise the agent asks whether a target connection is now available and waits for a response. Whenever runner handoff is skipped, the completion message and the planning summary manifest (08_summary/EXECUTION_MANIFEST.md for Snowflake, 08_summary/WORKSPACE_MANIFEST.md for Databricks) must include a resume recipe with the runner’s exact input names — migration_repo_id, source_connections, target_connection — filled in with the actual values so operators can copy-paste when a target connection becomes available.

Migration validator: data equivalence and open-deviation reconciliation

The {platform}_migration_validator blueprints validate code conversion and data equivalence after the runner completes. Data-equivalence and reporting phases load system_diff_tools and scheduler_tools in addition to data_connector_tools, git_action, and platform-specific connector tools (databricks_tools for Databricks; flow_tools for Snowflake). Contract-driven verification (preferred). For keyed tables and query outputs, the validator uses verify_against_contract with a Contract YAML: source and target connection_id + query, a required non-empty keys list, and per-column method, tolerance, and normalize rules where exact checksums are insufficient. The run is submit-and-return — it returns a run_id with status: "running" (optionally pass wait_seconds up to 60 for small tables). Poll get_verification_run(run_id) until finished_at is set. Finished runs carry a tri-state verdict (PASS / FAIL / INDETERMINATE), rows_compared, mismatched_key_count, mismatched_keys_overflow, hot_suspended_key_count, truncated / truncation_reason, and per-column method details. Treat a FAIL with zero mismatched keys as a confirmed mismatch whose localization is incomplete — never as clean. Quick checks with _compare_query_results. Keyless spot checks still use _compare_query_results (row count, aggregates, samples). The tool also accepts optional keys (array of strings). When provided, Genesis runs the same system diff verifier and adds checks.keyed with a tri-state verdict. Only PASS keeps the overall comparison clean — FAIL and INDETERMINATE both fail the overall result. Verifier errors surface as checks.keyed.verdict == "INDETERMINATE" with an error reason; they are never silently skipped. Open-deviation reconciliation (validator-owned). While a validation mission is open, the validator — not a background Genesis job — reconciles open deviations:

Surface the queue — when writing 10_validation/REGRESSION_REPORT.md, call list_open_deviations(spec_name) for each contract-driven verification. Record each deviation’s status (timing-noise, real-regression, known-tolerance, or hot-suspended) so the report separates accepted noise from true regressions.
Event-driven recheck — after a code fix, data reload, or timing-window change, call recheck_deviations(spec_name, spec_yaml) before updating the regression report. recheck_deviations returns still_open and newly_passed; keys that now pass are retired, while keys still failing past the window escalate toward real-regression.
Time-based aging — distinguish transient replication lag from true regression by registering a contract-scoped recurring job with scheduler_action (action="ADD_JOB", job_id="validator_recheck_<spec_name>", an interval or cron trigger sized to the lag window, and a what_to_do_prompt that drives recheck_deviations and updates the report). Record each job_id for teardown at sign-off. Use replace_existing=true when re-entering the phase.

At final sign-off, tear down every validator_recheck_* job with scheduler_action(action="REMOVE_JOB", ...) and confirm with scheduler_action(action="LIST_JOBS") that none remain. Reporting, remediation, and final-validation phases inject validation_instructions.md with the full workflow. See Process Scheduler Tools for scheduler_action parameters and Connections — Query comparison safeguards for verifier limits and keyed-check behavior.

Foundry Workshop app to GenesisApp

For app migration separately from the data-and-pipeline migration, Genesis ships foundry_workshop_to_app in the Blueprint Library. It rebuilds one Workshop app as a GenesisApp over ontology tables that have already landed in Databricks, then proves the rebuilt app’s values, charts, and tables against Workshop; it does not migrate data or pipelines. Its visual-review step is described in the migration guide. Required inputs are foundry_connection, module_rid, target_connection, and target_catalog. ontology_schema defaults to foundry_ontology, app_id defaults to a slug of the Workshop app name, and deploy_target defaults to genesis; set deploy_target: databricks_apps to deploy and prove it again as a Databricks App. The mission takes an estimated 20–40 minutes per app. See the Foundry Workshop app migration guide for the workflow and proof details.

Dashboard root-cause demo blueprint (Demo 2b)

Genesis ships demo_dashboard_root_cause (v0.10) for repeatable Sales Engineering demos that bake a real dashboard, versioned Python ETL Flow with a plausible business-logic anomaly, Twin lineage chain, and operator-safe handoff document. When features.presenter_controls_enabled is true, the recommended path is the ticket-driven dashboard anomaly vignette through the presenter routes: set up the dashboard Mission, choose an ETL system and coding agent, then prepare the Jira ticket so Genesis files a real Jira issue and starts the matching failure fixture before Jira automation hands work to Eve. It is a disposable demo, so the Blueprint Library does not start it; the standard mission-start API does, given its presenter scope (demo_scope and presenter_session_id). No private Launchpad journey or demo_builder bot is required. The dashboard’s daily recognized-revenue chart highlights a material low outlier against the recent operating baseline, rather than always highlighting the latest day. Kickoff must include only the standard profile label:

Demo profile: standard_product_journey

Do not put PR mode, repository routing, or managed-source identity in kickoff. After Eve independently diagnoses the dashboard symptom and proves a corrected candidate in isolated scratch state, the operator supplies routing in an approval reply:

approval: create review
pr_mode: live
managed_flow_repo_id: <repo id>
managed_flow_source_id: <source id, or none if registration is required>
reviewed_artifact_path: <path below flows_root>

Live PR mode requires demo.allow_remote_git=true, provider credentials, an origin/default branch, and managed Flow source capability. PR creation uses flow_action managed-source actions (REGISTER_MANAGED_SOURCE, SYNC_FROM_REPO, EXPORT_COMMIT) — not broad raw Git mutations. The live handoff is fail-closed: diagnose → immutable scratch proof → post-diagnosis routing approval → managed-Flow PR/rehearsal artifact → explicit apply approval → safe rerun → warehouse + dashboard proof → debrief A PR failure never falls through to a Flow update. Apply runs the proven candidate into a validated replacement table and swaps rows transactionally; failed reruns or dashboard proof automatically restore the prior Flow definition, pin, and warehouse rows before idempotent cleanup. Mission-repo handoffs contain symptom and routing guidance only — never the correction or corrected expected value. Every mutable artifact is prefixed demo_<scenario_id>_<demo_resource_scope>__* using the bounded collision-resistant scope persisted at mission start (demo_resource_scope is derived from the presenter demo_scope plus the unique project identity). Copy the exact demo_scope and demo_resource_scope values returned by ENTER_PHASE — do not derive them from repo_id or a truncated mission id. Concurrent SE runs stay isolated because each mission gets its own demo_resource_scope. Flow Python steps consume the runner’s parameters mapping; fixture and template integrity use file(action="read", include_sha256=true) and flow_action definition_sha256 responses for preflight checks.

Data Estate Health Dashboard blueprint

Genesis ships data_estate_health_dashboard for creating a client-specific, point-in-time health snapshot from a populated Context Graph. The blueprint organizes the result into Trust, Cost (Benefit), and Hygiene views; it is not a recurring monitor and does not replace an existing app. A run takes approximately 30–60 minutes and a later run creates a new snapshot. Launch the blueprint from the Build Data Estate Health Dashboard journey in Launchpad when the Context Graph contains data. The journey collects five structured inputs:

Input	Choices or purpose
Systems and sources	Systems and sources to reconcile to graph records
Databases, jobs, and naming	Database, job-family, and naming guidance
Environment exclusions	Environments or asset families to exclude
Leadership priority	`balanced`, `trust`, `cost_benefit`, or `hygiene`
Pipeline history availability	`available`, `partial`, or `unavailable`

The mission uses the Context Graph as its scope and lineage authority, then prepares and verifies its owned analysis runtime before it captures bounded evidence, analyzes deterministic signals, materializes a mission-scoped dataset, and builds the dashboard from that dataset. Capture is admitted only after the runtime preparation check passes, and the normal dashboard review requires stakeholder approval before the retained-resource handoff is published. Missing or incomplete evidence remains unavailable or partial; it is not converted to zero. The dashboard labels weighted compute as an estimate and ranking proxy, not billed credits. For each accepted source, the workflow makes at most one compact SEARCH_NODES request. If the response indicates another page, the workflow records partial coverage and the continuation instead of fetching more pages. See Lineage Tools for the paging parameters and response fields. Each run owns its app, dataset, SQLite projection, and mission files for the app’s lifetime. The mission does not delete those resources at completion; the handoff records ownership, retention, recovery caveats, and the manual deletion order. See Digital Twin and Context Graph for the Context Graph workspace and Lineage Tools for the graph statistics and lineage actions used by the blueprint.

Client file onboarding blueprint

Genesis ships a client_file_onboarding blueprint for repeatable Sales Engineering demos that onboard a realistic four-file client file package into Databricks or Snowflake.

Input	Required	Purpose
`source_mode`	No (default `github`)	Source route: `local_files` for Mission chat attachments or `github` for the pinned legacy package
`source_git_connection`	Conditional	Fully-qualified GitHub connection id that can read `genesis-computing-ai/genesis_demos`; required only for `github` mode
`target_connection`	Yes	Fully-qualified writable Databricks or Snowflake connection id
`coding_agent`	No (default `ginie`)	Presenter-selected coding agent for the showcase mapping model: `ginie`, `cocoa`, or `claude_code`

The blueprint runs as one goal-mode mission with four phases:

Phase	Work	Key artifacts
0 — Preflight and mapping	Verify the private source package, prove Databricks privileges, write field mappings	`.onboarding/CONTEXT.md`, `01_mapping/SOURCE_INVENTORY.md`, `01_mapping/SCHEMA_MAPPING.md`
1 — Ingestion	Land four CSVs in a mission-scoped Unity Catalog volume and build raw Delta tables	`02_ingestion/LOAD_REPORT.md`
2 — SQL pipeline	Build staging, latest-market, identifier-bridge, and enriched-holdings models	`03_pipeline/pipeline.yaml`, `03_pipeline/models/`, `03_pipeline/BUILD_REPORT.md`
3 — Validation and handoff	Independently prove counts and identifier reconciliation	`04_validation/VALIDATION_REPORT.md`, `04_validation/DEBRIEF.md`, `READY.md`

Every mutable repository, Unity Catalog schema, volume, pipeline, and table name includes a ten-character SHA-256 suffix derived from the complete mission repository id so concurrent runs stay isolated. The blueprint never writes to an unscoped shared schema. Launch the flow from the gated Onboard client files Launchpad journey when features.show_client_file_onboarding_journey is enabled. See Chat and Threads — Onboard client files for the local-file attachment flow and wizard steps, and Advanced Settings — Launchpad feature flags for enablement. For the local_files attachment workflow and its waiting, retry, and cancel behavior, see Chat and Threads — Onboard client files. When source_mode is local_files, Launchpad uploads and stages one or more client onboarding files before the target-selection step opens the generic Start Mission modal. The modal shows the number of files selected in Launchpad; it does not provide a second upload control. The staged file ids and session id are passed with the mission-start request, and Genesis verifies each upload, preserves the exact bytes in the Mission repository, and starts Eve with the staged files ready for mapping. Chat-started Missions that do not provide pre-staged files continue to use the attachment workflow linked above. The target Databricks connection needs SQL warehouse access plus USE CATALOG, CREATE SCHEMA, USE SCHEMA, CREATE VOLUME, WRITE VOLUME, and CREATE TABLE privileges on the catalog the mission pins during preflight. For Snowflake targets, this blueprint uses the repository-backed execution profile described in register_execution_profile and carries its execution evidence into validation. For Databricks Prover targets, reusable model SQL must use only two-part <target_schema>.<table> relations and must not embed the live target catalog. Keep target_catalog in execution configuration and evidence; the guarded Prover adapter selects the mission’s sandbox catalog and retargets the reviewed SQL before execution. The selected target model key must list every dependency SQL file the adapter consumes, in execution order, with the mart file last when one exists.

Behavioral Prover contract inputs

The validation phase prepares a credential-free source and target execution contract before calling validate_migration. In selected-bundle or local-files mode, use the adapter-keyed descriptors below and replace every placeholder with the verified mission value:

{
  "profile_scope": "<complete Mission repo_id>:<validation_specification_checksum>",
  "source_profile": {
    "csv_sql": {
      "connection_ref": "<complete Mission repo_id>",
      "payload": {
        "repo_id": "<complete Mission repo_id>",
        "csv_files": {"<logical_raw_name>": "client_files/<filename>"},
        "schema_columns": {"<logical_raw_name>": ["<exact CSV header>"]},
        "transform_sql": {"<model_key>": "<independently reviewed SQLite SELECT>"}
      }
    }
  },
  "target_profile": {
    "databricks_repo_sql": {
      "connection_ref": "<authoritative target_connection>",
      "payload": {
        "catalog": "<live target catalog>",
        "sandbox_catalog": "<target_catalog>_stim_<demo_resource_scope>",
        "repo_id": "<complete Mission repo_id>",
        "source_tables": {"<source_schema>": ["<raw_table>"]},
        "table_map": {"<logical_raw_name>": "<source_schema>.<raw_table>"},
        "model_sql_files": {
          "<selected_target_model_key>": [
            "03_pipeline/models/<first_dependency>.sql",
            "03_pipeline/models/<next_dependency>.sql",
            "03_pipeline/models/<mart_model>.sql"
          ]
        }
      }
    }
  }
}

For client_file_onboarding, profile_scope must be the exact repo_id:validation_specification_checksum binding shared by both profiles; the checksum is 64 lowercase hexadecimal characters. Phase 3 also emits the authoritative_onboarding_validation_ready completion proof, which requires a finished, reproducible Prover result with zero findings and at least one case and model validated, plus validation_reference.schema_version: 1, the checksum, and the matching Prover run id. Managed storage is connection-owned. The authoritative Databricks connection may provide the optional non-secret prover_managed_location_root; do not copy it into the profile, emit a managed_location field, or auto-discover arbitrary external locations. Legacy stored runtime profiles may still contain managed_location, but new Mission-authored profiles must leave managed storage to the connection. Every source schema_columns key must have a matching csv_files key, and every stimulus row must use one of those logical keys and only its declared columns. The target_node suffix after the final . must match a key in both transform_sql and model_sql_files; use the stable logical key, not a physical table name. For the Databricks output-relation validation and its exact fail-closed behavior, see prepare_migration_prover. Use JSON null for nullable non-string stimulus values, never an empty string; date values must be valid calendar dates in the source format. When Launchpad pre-stages local files, the server adds local_file_bundle to the execution inputs. It contains the complete Mission repo_id, the fixed manifest path client_files/manifest.json, the manifest SHA-256, and an ordered files list with each file’s path, filename, byte_size, mime_type, and SHA-256. The mapping phase must verify this evidence before reading the files and must stop if any path, size, MIME type, or checksum does not match. For the client-file onboarding blueprint, the final FinData projection uses this exact ordered contract: position_id STRING, internal_security_id STRING, isin_number STRING, security_name STRING, fund_name STRING, portfolio_name STRING, current_market_value_usd DECIMAL(18,2), unrealized_gain_loss_usd DECIMAL(18,2), portfolio_weight_pct DECIMAL(18,6), cusip_id STRING, trade_date STRING, px_last DECIMAL(18,6), composite_esg_rating DECIMAL(18,6), letter_grade STRING, carbon_intensity DECIMAL(18,6), has_identifier_mapping INTEGER, has_latest_market_data INTEGER, and has_esg_data INTEGER. Both final SELECT lists must explicitly cast and alias every expression in that order; do not use SELECT *. Indicator expressions must return integer 1 or 0, not boolean values. Cross-engine validation normalizes declared numeric values to canonical decimal text (including exponent forms), booleans to lowercase true or false, and migration test-value timestamps to UTC wall-clock YYYY-MM-DD HH:MM:SS text. For System Diff comparisons, full timestamp values in columns declared date or timestamp by both engines compare as one instant when drivers use T or a space as the separator, and Z, +00:00, or no UTC suffix. Fractional seconds are preserved, with trailing zeros ignored. Other offsets and text-typed values are not canonicalized. Text values are not coerced. The comparison uses the declared output types from both engines when they are available. A migration whose source consumes landing FILES rather than table rows uses the file_python_oracle source kind instead of a SQL adapter. Declare the reviewed program that executes the transform, pinned by sha256, together with the landing location, the input files and the typed declared outputs; the shape and its fail-closed guards are described under prepare_migration_prover. Name only a profile kind that is actually registered, and never present a profile as ready for a runtime that has none: preparation answers status: "unsupported" with the exact missing capability, and that answer is the one to relay rather than a substitute profile. When the executable oracle is a reviewed clone rather than the original runtime, set oracle.assurance: "reviewed_clone" and name the original in stands_in_for — the campaign then records that it does not cover that runtime, and the Blueprint must not describe the result as proving it. Call prepare_migration_prover with user_approved=true and pass the cases through unchanged. A person then approves the test cases once, in Action Review: the agent asks with request_test_case_approval for each view, and the request appears in the chat as an Action Review card. No path skips this, and the agent does not also ask in the chat. When the cases are approved, the agent calls validate_migration with the returned profile ids; when they are declined, it tells the user the reason and what it will change, and asks again in the user’s next turn. With sign-in off, the cases are approved at once. If the tool refuses a pinned baseline because it was recorded with a different test-value rendering, rerun without baseline_trace_hash to record a fresh source oracle and save its new hash; see the [validate_migration reference] (/docs/Genbot-Toolkit/Additional-Tool-Groups#validate_migration). For the ticket-driven dashboard path, assigning the prepared Jira issue to a configured Genesis worker authorizes investigation and remediation of that isolated fixture; Eve does not request a second approval or token. Completion requires a successful recovery run, Prover PASS, and the five-line Genesis RCA final debrief comment before the Jira issue is closed.

Phase order and document flow

Blueprints can declare blueprint.phase_order in blueprint_manifest.yaml as a list of phase ids. Use this when phases use string ids (for example catalog, select_documents) instead of only numeric keys. Genesis uses phase_order to lay out the blueprint document-flow graph, to pick default “next phase” hints in the phase details modal, and to map legacy numeric active-phase indices to the correct string id during mission replay. Phases not listed in phase_order still appear after the explicit list, using numeric-then- alphabetic fallback ordering. For a programmatic mission whose entry phase Genesis enters before the first agent turn, Document Flow shows that server-started phase and the injected documents returned by ENTER_PHASE. The kickoff message records the phase entry and its documents so they appear in the graph even though the agent did not enter the phase with a tool call. Programmatic BlueprintRun missions with string phase ids should always keep phase_order in sync with the manifest phase keys. See Programmatic BlueprintRun for host integration details.

Phase work summaries

When a phase exits with work context, Genesis generates a work summary from that phase’s thread activity and completion proof. A generated summary is passed to the next phase; when auto_update_work_log is enabled in the blueprint manifest, Genesis also appends it to the mission repository’s WORK_LOG.md. Summaries that name recognized artifact files absent from both the phase activity and completion proof are replaced with a completion-proof-based summary. If the phase has no work context to summarize, Genesis does not generate or pass on a summary. Instead, the mission work history records that no summary was available. A thread-history read failure is recorded separately, so it is not reported as an empty phase.

Database read and write activity on the graph

When a blueprint mission executes SQL through governed connectors, Genesis records compact execution activity with the active blueprint phase (phase_metadata) and classifies each statement as read or write access. The mission Document Flow graph uses that attribution to render separate connection nodes per phase:

Node	Layout	Meaning
READ	Upstream of the phase (purple)	Read-classified statements such as `SELECT`, `SHOW`, and `DESCRIBE` against the connection during that phase.
WRITE	Downstream of the phase (amber)	Write-classified statements such as `INSERT`, `UPDATE`, `MERGE`, `CREATE`, and `DROP` against the connection during that phase.

Select a connection node on the graph to expand or collapse its inline activity list. Open stored query results from clickable entries when available, and (for reads) jump to related tables referenced by phase artifacts. Activity labels prefer explicit titles; when none was recorded, Genesis derives a short SQL summary for display. When a computed result combines saved results from multiple connections, the graph labels its node Computed results rather than showing the placeholder connection ID. Journey debriefs and GET /api/data/bots/{bot_id}/threads/{thread_id}/query-activity use the same underlying activity records. See Overview tab: Document Flow and database activity.

Coding-agent delegation on the graph

When a mission delegates a coding task to Claude Code, Codex, or Cortex Code, Document Flow adds a coding-agent node downstream of the active phase. The node is connected with a cyan delegation edge and groups tasks by provider. Select the node to expand its task list and inspect each task’s running, delegated, completed, or failed status. A running delegation also keeps its edge animated so presenters can show work that is still in progress. The same coding-agent nodes and task statuses are restored when a mission is replayed. Genesis refreshes the flow while a coding-agent tool starts and after it stops, so the live graph can show a delegation before the task completes. For the realtime payload used to restore this graph, see Unified realtime WebSocket.

Injected documents and mission file preview

Phases can list input documents under context_management.inject_documents in blueprint_manifest.yaml. Each entry is either a path string or an object with a path field (and optional description, required, or repo_id). Genesis injects those files into the agent context when the phase runs. Phase-transition results deliver injected documents in full (they are exempt from the tool-output governor). When any new phase is entered, Genesis stubs document content from all prior phase-transition results to reclaim context window space; stubs keep file_path / repo_id so the agent can re-read on demand. A hard ceiling of 256 KB total injected-document content applies per transition — documents past the budget are replaced with read-it-yourself stubs instead of being truncated mid-string. In the mission work log phase-details view, Genesis resolves declared paths against mission artifacts so Open and Preview target the mission repository copy when a match exists:

Injected documents — Genesis searches outputs from earlier phases.
Exit criteria and branch requires_documents paths — Genesis searches outputs from the current phase.

Matching rules for that UI resolution:

Spec shape	Example	Matches
Full path (exact)	`docs/ARCH.md`	Only that exact path in the mission repo
Wildcard	`reports/REPORT_*.md`	Paths matching the shell-style `*` pattern
Bare filename	`PHASE_0_SUMMARY.md`	Any artifact whose final path segment equals the filename, such as `phase_logs/PHASE_0_SUMMARY.md`

Bare-filename fallback applies only when the spec contains no / and no *. Specs with a directory prefix require an exact or wildcard match on the full path — docs/ARCH.md does not match other/ARCH.md. When more than one earlier phase produced an artifact with the same basename, Genesis uses the match from the earliest phase. These rules apply to mission UI preview and download links. The blueprint document-flow graph still uses exact and wildcard matching on manifest paths to decide whether an injected document is a prior-phase output.

Review details and files

When you open a blueprint detail or phase view, Genesis can expose related files for preview or download when the blueprint includes them. During a mission, the phase-details panel in the work log uses the same preview controls for injected documents and deliverable paths; see Injected documents and mission file preview. In OAuth- or OIDC-protected deployments, protected downloads run through your current signed-in session automatically. Some built-in blueprints also carry executor-specific implementation guidance. When a blueprint phase asks you to run local Python with third-party packages, follow the managed environment workflow from Code Executor Tools: create the environment with create_env, inspect it with list_env_deps, reuse it with execute_python_code(..., env=...), and add packages later with update_env instead of invoking pip inside the executed script. For the built-in synthetic_data_generation blueprint, database destinations now require Genesis-side connection and query proof before the run is treated as complete. When the generated output is a database rather than files, the delivery should record the final Genesis connection_id, whether the connection was newly registered or reused, and the registration details used for access. SQLite runs created in the repo should capture the repo_id and relative_db_path used to register the database with Genesis. The same run should also include docs/GENESIS_CONNECTION_VERIFICATION.md and docs/GENESIS_QUERY_VALIDATION.md. These documents should show that Genesis could query the generated database through _query_database, including table discovery, SELECT COUNT(*) checks for every manifest table, representative schema checks proving expected columns are queryable, relationship or integrity queries, and at least three realistic read queries that a Genesis user would care about. File destinations do not require this extra database connection proof. The Railway sandbox environment previously used for the built-in legacy_data_lake_workshop blueprint was retired in October 2026. Run the blueprint on any Genesis instance with LOAD_LAB_SOURCE_DATA_DB=true to make the shared workshop source sqlite.lab_source_data available before the mission starts. Each run then provisions its own target SQLite database automatically, so workshop participants stay isolated while the shared source remains read-only. For the built-in genesis_health_check blueprint (category: system_validation), Genesis runs an operational health mission that validates configured connections with read-only probes, confirms the active LLM path can complete prompts and record usage metadata, and—when prompt caching is enabled—proves cache-read telemetry from usage counters rather than model text. The blueprint ships with default_mode: goal, so a Mission started without a mode runs the checks end to end without manual gates between phases and stops for a person only when it stops making progress. MCP, agent-to-agent and Programmatic BlueprintRun hosts that pass continuous still get the legacy continuous run. Typical use cases include verifying a deployment after startup, deploy, or config changes; confirming connections are reachable; and validating that prompt caching produces observable cache-read counters when the provider supports them. The mission produces structured reports under reports/ in the mission repository:

Phase	Report artifacts
Runtime Preflight	`reports/00_preflight.md`
Connection Health	`reports/01_connection_health.json`, `reports/01_connection_health.md`
LLM Round-Trip Health	`reports/02_llm_health.json`, `reports/02_llm_health.md`
Prompt Cache Probe	`reports/03_prompt_cache.json`, `reports/03_prompt_cache.md`
Regression Log Sweep	`reports/04_log_sweep.md`
Final Health Report	`reports/genesis_health_check_report.md`, `reports/genesis_health_check_summary.json`

Prompt-cache pass/fail uses turn-level or thread-level usage metadata such as cache_read_input_tokens, cache_read_tokens, cache_creation_input_tokens, cache_write_tokens, cached_tokens, and thread_cost_summary.cache_rate_pct when available. The warm-up/repeat probe must show cache-read telemetry on the repeat turn when caching is required; Genesis does not pass this check based on the assistant response text alone. The blueprints described from here to the end of this section are Genesis’s internal release and QA tests. They are hidden from the Blueprint Library and start only by name. For broad tool-family validation across git, SQL, and logging, Genesis’s release validation uses the hidden built-in system_test blueprint (category: system_validation, version 1.5). It exercises core tool families with concise per-phase summaries and ends in a final error-log hard-gate that produces an explicit PASS/FAIL/BLOCKED verdict; unverified mission-log provenance is reported as a harness-inconclusive outcome, not as a clean pass. Its requested test artifacts, including generated sample data, are synthetic and pre-authorized; the mission does not ask before creating them. A general run may omit release_context; when that input is provided, the run is release acceptance for aws/alpha only and must include independently verified target, candidate tag/SHA, deployed-version, run tier and pinned provider/model, and evidence-source details. Contextual runs carry run_tier, run_provider, and run_model; Genesis pins that provider/model for the run tier inside the mission only and rejects the start with HTTP 400 when any of them is missing or invalid. No phase pins its own tier, so context_tools(action="GET_CONTEXT") reports the run tier throughout, and the observed model must equal run_model. The mission never switches tier or escalates. Record observed usage. The mission must not change shared assignments or agent defaults; the release wrapper owns model selection. Version 1.5 adds the optional invocation_started_at input. Release callers capture this timezone-aware server timestamp immediately before starting the mission so a restart on a reused mission thread cannot reuse an older start log as its identity anchor. A manually started fresh mission may use its observed timezone-aware project created_at only when exactly one distinct matching start exists; project creation time is not a restart boundary. For unattended sandbox validation, provide trial_context instead of release_context (the two are mutually exclusive). Include the verified lab/<name> target, candidate SHA/version, and external restricted-user denial evidence, plus run_tier, run_provider, and run_model. The mission pins that provider/model on the run tier; record its observed usage. Shared model assignments are only a baseline and must not be changed. Missing or mismatched evidence blocks the run. The mission stays on the run tier, runs the functional checks and strict error-log gate, and records that it is not release acceptance. It must not deploy or wake an environment, change shared models, or submit tickets. Runs supplied with release_context or trial_context are unattended. If a required prerequisite fails or is blocked at any phase, the mission immediately writes reports/system_test_report.md with the first cause and available evidence, and marks every unreached required check BLOCKED. It does not ask the operator, wait for input, or repair shared configuration. After saving the report, it changes this mission’s status to FAILED, verifies that the change succeeded, and ends without claiming phase completion. If a provider error prevents the report from being written, the external runner captures diagnostic evidence. For a shorter unattended lab check, release validation uses the hidden built-in system_test_lite blueprint. Its required release_context supplies a verified lab target, deployed_version, test_revision, run_tier, run_provider, run_model, required_connections, and exclusions; provide candidate tag/SHA only for an RC run. Genesis pins the provider and model on the supplied run tier from the first call. Verify that context_tools(action="GET_CONTEXT") reports that tier and that observed model evidence matches run_model. There is no model fallback: missing access to the pinned model blocks the run. The mission checks context, read-only required-data queries, and report read-back without changing shared provider, tier, or settings. The caller collects final model/usage evidence and deletes the mission’s resources. For release acceptance and sandbox trials, the RBAC check validates the runner-provided denial evidence against the target and candidate SHA, requires a real GET /api/rbac/users response with status 403 from a verified non-admin user without manage_users, and rechecks that permission in the mission thread. Missing or mismatched evidence blocks the run. Do not include the user’s token in mission inputs or reports. Do not use this full blueprint for SPCS release validation. Both system_test and spcs_system_test take an initial get_error_logs(include_rotated=true) snapshot before validation starts and save the complete output to reports/error_log_baseline.json. The snapshot’s observed_at becomes the immutable error_log_since boundary; if the snapshot fails or has no observed_at, the run is BLOCKED. The final gate passes that boundary to get_error_logs(since=error_log_since, include_rotated=true), so errors already in the initial snapshot are reported separately as accompanying recommendations, not failures. The report’s error-log section lists every baseline error group with its count, level, signature, and sample record in a section headed Accompanying errors outside the mission window — do not affect the verdict, or states None. when there are no groups. The snapshot holds at most 50 groups (the default max_groups of get_error_logs); its total_groups field gives the full count, so a larger total_groups means the accompanying list is truncated. These recommendations never change the verdict or excuse or offset an error in the mission window. The windowed call groups all server errors by signature and returns at most 50 groups by default. If total_groups exceeds the number returned, the mission repeats the call with the same since and requests max_groups=total_groups (the limit is 200); a still-truncated result is BLOCKED. Each blueprint also finds the mission’s MISSION_STARTED INFO log line with grep_logs, using the observed project id, mission thread id, blueprint name, and bot id. The caller-provided invocation_started_at is the inclusive search boundary; it prevents an earlier start on the same thread from identifying a restart. For a manually started fresh mission, the project created_at fallback is valid only when exactly one distinct matching start is found. Genesis writes the anchor when a Mission starts a phase without preserving an existing active phase; its message format is MISSION_STARTED project=<id> thread=<id> blueprint=<name> bot=<id>. The anchor does not replace the immutable error_log_since baseline. Attribution uses the later of that baseline and the anchor’s own record_timestamp as attribution_since. The gate attributes a window group only when a parsed log record’s own record_timestamp is at or after attribution_since and its structured thread_id or parent_thread_id matches the mission thread. Do not date a traceback from a neighboring record. If a group’s 2,000-character sample does not establish attribution, grep_logs confirms that group’s exception and distinctive message in the same time window, then the returned structured thread identities are checked exactly. A full oldest-first result is retried with max_results=100. A matching product error remains FAIL, even if other diagnostics are incomplete. A no-match establishes a server-wide group only when the mission anchor exists and the search is complete; failed or incomplete searches, unknown timestamps, truncated results, or missing/ambiguous anchors make the result inconclusive (blocked_cause="harness_block"), not a clean absence. The gate passes only when every window group is returned and decided and none is attributed to this mission. Server-wide groups are reported separately and do not change the verdict. Each report records the immutable baseline, invocation anchor, attribution_since, and matched records with their own timestamps and structured identities. See Application log search for the grep_logs parameters and response fields. Phase 6 runs get_error_logs as the authoritative gate — not grep_logs. grep_logs searches the full application log by pattern; get_error_logs reads the curated daily-rotating error log and returns grouped error signatures. grep_logs is used only to confirm attribution for a group returned by get_error_logs; it does not replace the error-log gate. If get_error_logs returns success=false (for example when GENESIS_ERROR_LOG_FILE is empty), the gate is BLOCKED because it could not be verified. For system_test, ticket proposals cover mission-attributed window groups as blockers, and server-wide window groups plus accompanying pre-window groups as recommendations. Propose a group only once; if it is attributed to the mission, label it a blocker. Proposals are grouped by signature and deduplicated against open tickets. General interactive runs ask for operator confirmation before filing approved items. Release acceptance and sandbox trials run unattended: they record proposed tickets in reports/error_log_report.md, do not ask for confirmation or submit tickets, and continue to the final report with the gate’s verdict.

Phase	Report artifacts
Final Consolidated Report	`reports/error_log_report.md`, `reports/system_test_report.md`

reports/error_log_report.md records the gate verdict (VERDICT: PASS, VERDICT: FAIL, or VERDICT: BLOCKED), attributed window groups, any groups whose attribution could not be confirmed, and separate server-wide and pre-window sections that do not change the verdict. reports/system_test_report.md rolls up per-phase successes, errors, log highlights, environment validation, ticket proposals by blocker and recommendation, and the overall PASS/FAIL/BLOCKED verdict driven by the error-log gate. It also gives counts of server-wide and accompanying pre-window groups and points to their sections in reports/error_log_report.md. For lightweight Snowflake release validation, Genesis uses the hidden built-in spcs_system_test blueprint (category: system_validation, version 1.2). It is intended for Snowflake release validation and covers the Native App account identity, a read-only qualified query for the expected runtime service, that service’s required provider external access integrations, run-tier/model evidence, and mission-attributed error-log checks. It does not repeat Git, file, media, general RBAC, or other broad UAT checks. The required release_context input must provide independently verified target, candidate tag/SHA, deployed-version evidence, account identity, application/schema, runtime service, run tier and pinned provider/model (run_tier, run_provider, run_model), required EAIs, and evidence sources. The blueprint writes reports/spcs_system_test_report.md with an explicit PASS/FAIL/BLOCKED verdict; missing, mismatched, skipped, or unverifiable evidence cannot produce PASS. An unverified mission-log provenance check is identified as a harness block and graded inconclusive rather than as a product failure. This release run is unattended. On any failed or blocked prerequisite, including a model mismatch, missing native connection, runtime service or EAI evidence, or error-log failure, it immediately writes the report with the first cause and available evidence and marks every unreached required check BLOCKED. It does not ask the operator, wait for input, or repair shared configuration. After saving the report, it changes this mission’s status to FAILED, verifies success, and ends without claiming phase completion. Both system_test and spcs_system_test accept the optional invocation_started_at input for the same restart-safe mission-log anchoring described above. On a mission_log_provenance abort, the early report includes a machine-readable mission_abort object and a required_checks list of atomic verifications, preserving observed failures and marking unreached checks as BLOCKED with the blocking prerequisite. The release runner saves the original QA bootstrap controls and shutdown schedule before claiming a target, then records the snapshot identity and ownership acknowledgement before waking only the captured services. It also captures the original HTTP configuration before validation and verifies it before the test can mutate configuration. Cleanup restores and verifies the HTTP configuration before restoring service/pool controls and the shutdown schedule. Missing snapshot evidence, unknown drift, or an unverified restore leaves the target blocked for operator recovery; recovery requires the original owner, terminal child runs, and exact live readback. In the release flow, spcs/qa runs on main; elsewhere, the mission uses the run tier named by its release context. release_context.run_provider and release_context.run_model are pinned before its first LLM call; a missing or invalid value rejects the start with HTTP 400. context_tools must report the selected tier and the observed model must equal run_model. An empty required EAI list needs independent evidence that LLM egress for the run provider is available, for example through the deployment’s catch-all external access integration. Record the observed model evidence. Manual starts without release_context retain their requested provider and tier. For mission-level tier inheritance and per-phase tier overrides, Genesis uses the hidden built-in fast_test_tier_matrix blueprint (category: testing). It runs five short math phases in under five minutes and mixes inherited mission tiers with explicit context_defaults.model_tier overrides so operators can confirm tier selection propagates correctly.

LLM configuration matrix probes

For automated LLM provider configuration verification, Genesis ships two hidden built-in probe blueprints in category: testing:

llm_qa_lite — a strict two-phase subset (phases 0–1, both main tier). Each phase performs deterministic arithmetic on an injected starting value and writes token-exact lines to result_phase_0.md and result_phase_1.md (RESULT=<computed> and TOKEN=LLM-QA-PROBE-P0 / TOKEN=LLM-QA-PROBE-P1). Used for quick per-cell verification in the LLM config matrix QA harness.
llm_qa_full — a four-phase tier matrix derived from fast_test_tier_matrix: phases 0–1 use main, phase 2 uses fast, and phase 3 uses frontier. Phase 3 writes FINAL_RESULT.md with a formula-derived SUMMARY=LLM-QA-FULL-P0=<p0>-P1=<p1>-P2=<p2> line. The harness reads mission artifacts through GET /api/git/{repo_id}/{path} and asserts expected token content programmatically.

Both probes use required_document exit criteria only — no agent-judged prose. llm_qa_lite phases 0–1 are byte-identical to the corresponding phases of llm_qa_full.

Model tier during blueprint missions

Mission kickoff tier selection applies to every phase that does not set its own tier. Blueprint authors can pin a different tier on a specific phase with context_defaults.model_tier in blueprint_manifest.yaml (frontier, main, or fast). Genesis applies that override when the phase starts (ENTER_PHASE). Legacy use_fast_model: true remains supported; prefer context_defaults.model_tier: fast for new blueprints. For each turn, Genesis resolves the effective chat tier in this order (highest precedence first):

Per-message tier override (user selects a tier for that specific turn in chat)
Active phase context_defaults.model_tier (recorded at phase entry)
Thread-level tier override (from thread model settings)
Mission kickoff tier from the Start Mission modal, start_blueprint_mission, or POST /api/blueprints/{blueprint_name}/start
Agent default provider and inherited chat tier

Phases that omit context_defaults.model_tier inherit the mission kickoff tier from step 4 for their turns. The built-in bronze_to_silver_onboarding blueprint pins all three phases (Map, Answer, and Build and prove) to the frontier tier. The phase pin applies unless an individual chat turn specifies its own tier. When entering a different phase in the same blueprint, Genesis announces a model-tier change when both phases declare different startup tiers. Phases that inherit a tier do not produce a tier-change notice.

Tool groups during blueprint missions

Blueprints can declare context_defaults so required tool groups load at thread start and optional model_tier pins the chat tier for that phase. Declare blueprint.context_defaults to provide defaults for every phase; a phase’s own context_defaults overrides the blueprint value for each field it declares, and inherits fields it omits. Tool-group lists are replaced, not combined: a phase’s active_tool_groups (or tools_in_context) replaces the blueprint’s list for that phase. See Model tier during blueprint missions for inheritance rules. When a phase’s context defaults are applied, the phase-entry response includes phase_context_defaults_applied: declared shows the values requested by the phase, while effective shows the resolved model tier, active tool groups, and active skills for the next turn. The effective lists account for always-on and skill-required groups as well as the agent’s capability policy. If a declared group or skill is absent from the effective list, declared_but_not_applied identifies it; check its spelling and whether the agent’s policy allows it. If Genesis cannot resolve the effective state, the report still includes declared but omits effective. If a phase still reports tool not found, activate the missing groups in the current thread with manage_context(action="ADD_CONTEXT", active_tool_groups="flow_tools,databricks_tools") (comma-separated group names). Prefer per-thread activation during a mission; use set_bot_context_defaults(default_tool_groups=...) only when the agent should keep those groups on every future thread.

​Overview

​Main library actions

​Library index resilience

​Hidden built-in blueprints

​Local and managed installs

​Managed blueprint visibility

​Organization health blueprint fixes

​Import collisions and versioned updates

​Remote repository selector matching

​Sync recovery and reauthorization

​Card summaries

​Quick preview from the library

​Presenter Controls

​Presentation mode

​Presenter routes

​Reusable demo versions

​Rename a blueprint

​Source-aware detail views

​Typical workflow

​Start from a goal instead of a known blueprint

​Access and visibility

​Blueprint inputs and outputs

​Blueprint journeys

​Mission Center blueprint chain

​Journey debrief

​Database migration blueprints

​Approved chat migration blueprint

​Bronze-to-silver onboarding

​Planning inputs and online vs plan-only mode

​SQL syntax validation during planning

​Palantir Foundry to Databricks

​Semantic fidelity during SQL conversion

​Runner handoff and resume recipes

​Migration validator: data equivalence and open-deviation reconciliation

​Foundry Workshop app to GenesisApp

​Dashboard root-cause demo blueprint (Demo 2b)

​Data Estate Health Dashboard blueprint

​Client file onboarding blueprint

​Behavioral Prover contract inputs

​Phase order and document flow

​Phase work summaries

​Database read and write activity on the graph

​Coding-agent delegation on the graph

​Injected documents and mission file preview

​Review details and files

​LLM configuration matrix probes

​Model tier during blueprint missions

​Tool groups during blueprint missions

​Related pages

Overview

Main library actions

Library index resilience

Hidden built-in blueprints

Local and managed installs

Managed blueprint visibility

Organization health blueprint fixes

Import collisions and versioned updates

Remote repository selector matching

Sync recovery and reauthorization

Card summaries

Quick preview from the library

Presenter Controls

Presentation mode

Presenter routes

Reusable demo versions

Rename a blueprint

Source-aware detail views

Typical workflow

Start from a goal instead of a known blueprint

Access and visibility

Blueprint inputs and outputs

Blueprint journeys

Mission Center blueprint chain

Journey debrief

Database migration blueprints

Approved chat migration blueprint

Bronze-to-silver onboarding

Planning inputs and online vs plan-only mode

SQL syntax validation during planning

Palantir Foundry to Databricks

Semantic fidelity during SQL conversion

Runner handoff and resume recipes

Migration validator: data equivalence and open-deviation reconciliation

Foundry Workshop app to GenesisApp

Dashboard root-cause demo blueprint (Demo 2b)

Data Estate Health Dashboard blueprint

Client file onboarding blueprint

Behavioral Prover contract inputs

Phase order and document flow

Phase work summaries

Database read and write activity on the graph

Coding-agent delegation on the graph

Injected documents and mission file preview

Review details and files

LLM configuration matrix probes

Model tier during blueprint missions

Tool groups during blueprint missions

Related pages
